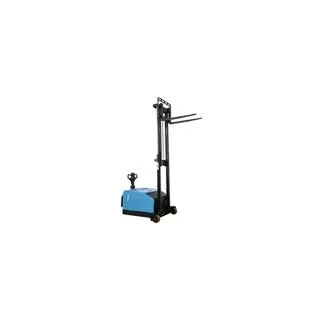

Xe nâng điện D1236

Manufacturer type designation

D1236

Identification

Drive: electric (battery or mains), diesel, petrol, fuel gas, manual

electric

Type of operation: pedestrian, stand on, seated, order picker

stand on

Load capacity / rated load Q

kg

1600

Load centre distance c

mm

600

Wheelbase

mm

1807

Weights

Service weight incl. battery

kg

1350

Axle loading, laden front / rear

kg

1560/1270

Axle loading, unladen front / rear

kg

560/670

Wheels

Chassis

Tyres: solid rubber, superelastic, pneumatic, polyurethane

PU

Tyre size, front

mm

80*70

Tyre size, rear

mm

115*55

Wheels number, front / rear

2/4

Track width, front

mm

200

Track width, rear

mm

850

Basic

Dimensions

Lowered mast height

mm

2300

Free lift

mm

100

Lift height

mm

3600

Extended mast height

mm

4080

Height of tiller in drive position min. / max.

mm

1110/1460

Lowered height (Fork)

mm

55

Overall length

mm

2375/2695

Length to face of forks

mm

1265

Overall width

mm

1250

Width over forks

mm

200-600

Ground clearance, centre of wheelbase

mm

50

Minimum aisle width

mm

3000

Turning radius

mm

1450

Performance

Data

Travel speed, laden / unladen

km/h

3/5

Lift speed, laden / unladen

m/s

0.13/0.23

Lowering speed, laden / unladen

m/s

0.13/0.23

Max. gradient performance, laden / unladen

%

5/7

Service brake

electromagnetic

E-Motor

Drive motor rating S2 60 min.

kW

AC 1.5

Lift motor rating at S3 15 %5)

kW

DC 3

Battery voltage, nominal capacity

V/Ah

24 / 270

Others

Type of drive control

Impulse

Sound level at driver's ear acc. to EN 12 053

dB (A)

70
