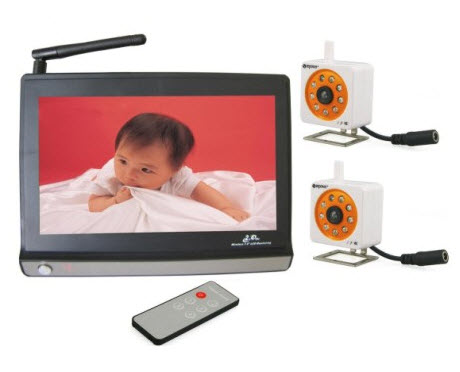

WRC860+WCM702

WRC860+WCM702

 Product Feature:

1. Infra-red LEDs for night-time vision, Effective night vision range: 5m

2. 380TV lines clear picture display,Environmentally Friendly Design.Baby Monitor KIT.

3. 4-channel available to Channel scan and channel skip for multi-camera usage

4. Built-in microphone for audio monitoring 7 inch TFT LCD 2.4GHz 4-Channels Wireless AV Color Monitor.Receiver inside easy installation

5.PAL/NTSC System.

6. Remote Control with Full Functions.On screen display (OSD) menu

Product Descriptions:

Receiver:

• LCD Type     TFT
• LCD Screen Size          7"
• Transmission frequency      ISM 2,400 MHz~2,483 MHz 4CH
• Receiving Sensitivity      ≤-85dBm
• Power Adapter     DC 12V/ 1500mA
• transmission distance without block    100m
• Dimension           190mm*140mm*20mm
• Weight          425

Camera

• Image Sensor      1/3" OmnVision CMOS
• Effective pixels     PAL)628(H) x 582(V) (NTSC)510(H) x 492(V)
• Horizontal Definition       380 TV line
• Minimum Illumination           1.0 Lux /F1.2Infrared LED ON
• Night-vision distance           5m
• Dimension                   48mm*48mm*25mm
• Weight   70g
