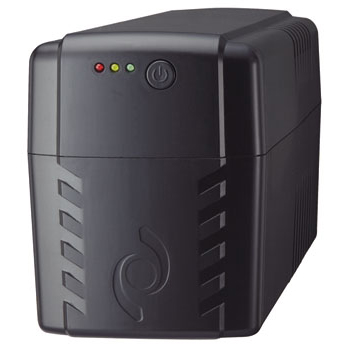

UPS Up Selec Off-line 650VA

Model

UN650

Input

Voltage Window

100/110/120/220/230/240VAC

Nominal -25%+25%(build-in A.V.R.)

Frequency

50Hz or 60Hz

Inv. O/P

Waveform

PWM Simulated Sine wave

Frequency

50Hz or 60Hz +/-1Hz

Capacity

650VA

Regulation

+/-3%

Transfer Time

2ms typical; 5ms maximum

Battery

Types

Lead-Acid maintenance-free

DC Bus

12V/7AH

Number

1 PCE

Recharge Time

Typically 8 hours to 90% charged

Run Time

10-30 minutes depending on load connected

Protection

Over/Under Volt.

Switch to Bat. O/P when Mains over regulation range

Overload/Short

Fuse & current limited for both mains and Battery modes

Low Battery

Two stages; no battery drain after cut off

Noise Filtering

EMI/RFI full time suppression

Mechanical

Socket Type

Universal Ouput Socket

Socket No. (pcs)

Universal * 2pcs

Dim (L*W*H)mm

311×96×14.5

Weight (kgs)

7

Shipping Wt.

7

Environment

Ambient

0-40 degree C, 0-90% non-condensing

Audible

Less than 35 dBA (1M distance)

Warning

LED on Front

AC Normal: Green LED Steadily; Backup: Yellow LED intermittently

Signals

Beeping Alarm

On Battery, Battery Low and Overload

CommunicationPort

DB9 or USB

Tel/Fax/Modem Protection

RJ11 or RJ45

Cold Start

It enables to activate UPS without Utility Power
