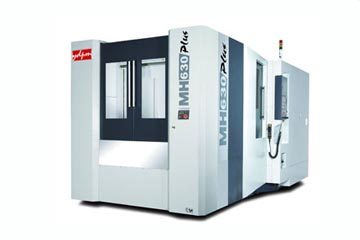

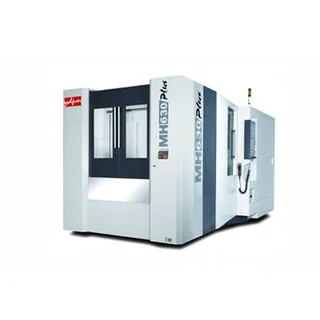

Trung tâm gia công ngang MH-630 plus

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

SpecificationsUnit: mm (inch)ITEMMH-630 PlUSPalletMax. work swing diameterØ 1050 mmTravelMax. travel range of X/Y/Z-axis1050 / 900 / 1050 mmSpindleSpindle speed10,000 RPM (Direct Drive)FeedrateCutting feedrate of X/Y/Z-axis1 -5000 mm /min (0.04-197

Specifications

Unit: mm (inch)

ITEM		MH-630 PlUS
Pallet	Max. work swing diameter	Ø 1050 mm
Travel	Max. travel range of X/Y/Z-axis	1050 / 900 / 1050 mm
Spindle	Spindle speed	10,000 RPM (Direct Drive)
Feedrate	Cutting feedrate of X/Y/Z-axis	1 -5000 mm /min (0.04-197 ipm)
Feedrate	Minimum indexing degree on rotary pallet	1°
Tool	Tool capacity	STD: 60 pcs; OPT: 120 / 180 pcs
Tool	Tool shank type	STD:BT-50; OPT.：CAT50 / BBT50 / HSK100A
Motor	Spindle motor	22 / 26 kW
Miscellaneous	Net weight (60 Tools)	23000 kgs

*Specifications are subject to change without prior notice.

Standard Accessories

• FANUC 0i-MF Controller	• Chain Type Chip Conveyor + Chip Bucket
• Spindle Speed：10,000 rpm (Direct Drive)	• Fully Enclosed Splash Guard
• BT50 Spindle	• 2 Pallet Shuttles, 2 Pallets (Bolted Type)
• Spindle Motor：22/26 kw	• Work Lamp
• Spindle Lubrication Coolant System	• Rigid Tapping
• Tool Magazine Capacity: 60 Tools	• M80 Auto Power Off
• Coolant System	• Operator and Maintenance Manual
• Automatic Lubrication System	• Programming manual
• Indexing Table 1。	• Parts List
• THK Linear Way	• Fanuc Manual (CD)
• Leveling Bolts and Pads

Options Accessories

• Tool Magazine: 60/120/180 Tools	• Scraper Type Chip Conveyor
• FANUC 31i, Siemens, Heidenhain	• Pallet wash
• Oil Hole Tool Holder	• Spin Window
• Spindle Speed: 12000/15000 rpm	• Hydraulic Fixture Interface
• Rotary Table 0.001 Degree (B axis)	• Oil Mist Collector
• Automatic Tool Length Measurement	• Transformer
• Automatic Workpiece Measurement	• CE
