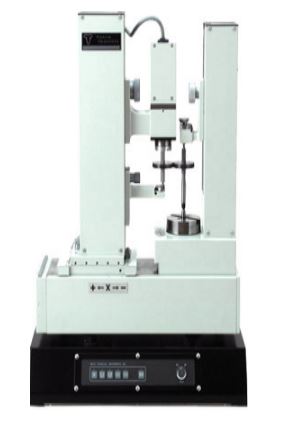

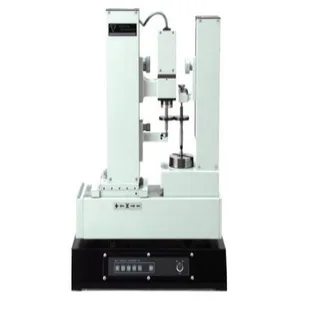

Thiết bị kiểm tra bánh răng SF40-NC Tokyo technical

THÔNG TIN SẢN PHẨM

It’s always been known that it is a single flank gear rolling tester that can measure transmission errors. However, it is also true that those machines were not practical because materialized machine bodies were too big or too expensive.

Our newly-developed “SF-40NC” is completely different from those traditional testers. Its weight is less than twentieth from tenth and its price is less than fifth from half compared to conventional testers. SF-40NC is a computer numerical controlled (CNC) tester which achieved easy transmission error analysis with small size body and reasonable price.



- With ultracompact single flank gear rolling tester, each data is processed by CNC control.
- Center distance is automatically set from specification.
- Ultracompact machine has resolution capability of 0.0001°

Thông số kỹ thuật





Test item	Single flank meshing error
Test gears	Spur gears with a hole or shaft・Internal gears
Measurement module	m0.2 ~ m2.0
Center distance	20(1) ~80 mm
Main shaft driving speed	Variable speed
Drive side maximum load	Max. 20 kg
Fixed side maximum load	Max. 5 kg
Measurement magnification	×100，×200 …×1000
Control axis	2-axis NC
Count axis	3-axis
Recording output	Laser printer
Optical scale	3-axis
Tester body weight	Approx.60 kg
Power supply	AC100V 50/60Hz 15A
