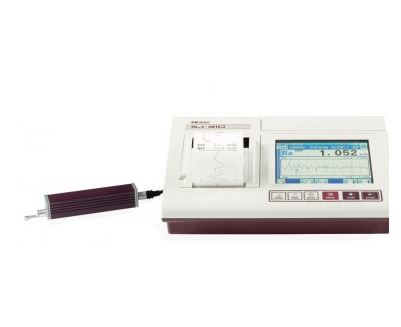

Thiết bị đo độ nhám bề mặt SJ-310, Mitutoyo

THÔNG TIN SẢN PHẨM

Máy đo độ nhám bề mặt

Model : SJ-310

Hãng sản xuất :Mitutoyo - Nhật

​

• No.178-571-02E
• ModelSJ-310
• Models availableSJ-310, SJ-310R and SJ-310S
• Measuring range12.5mm (.5 inch) 360µm (-200µm + 160µm) (X axis) 14400µinch (7900µin+6900µin) (Z axis)
• Measuring speed0.25, 0.5, 0.75 mm/s (0.01, 0.02, 0.03 in/s)
• Measuring methodLaser Hologage
• Drive unit.44Ibs, (0.2kg)
• Measuring Force4mN
• Stylus tip radius5µm
• ParametersRa, Ry, Rz, Rt, Rp, Rq, Rv, Sm, S, Pc, R3z, mr (c), Rpk, Rvk, δc, Rk, Mr1, Mr2, Lo, Rppi, R, AR, Rx, A1, A2, Vo, HSC, mr, SK, Ku, RΔa, RΔq, Wte, Wx, W, AW, Rmax, Rz1max, RzJIS, Rlr, Rpm, tp, Htp, λa, λq (can be customised)
• External I/Oif the auto-power off function ON: Power turns off if not operated for 30-600 sec (Switchable)
• Power SupplyTwo way power supply: battery (rechargeable Ni-MH battery) and AC adapter
• Dimensions275 x 109 x 198mm (10.83" x 4.29" x 7.80") (Display Unit), 115 x 23 x 26mm (4.53" x 91" x 1.02") (Drive Unit)
• Mass1.7kg (3.75Ibs) (Display Unit), 0.2kg (.44Ibs) (Drive Unit)
