Thiết bị đo điện trở cách điện Sonel MIC-30

Hãng sản xuất: Sonel

Model: MIC-30

Xuất xứ: Ba Lan

Index: WMGBMIC30

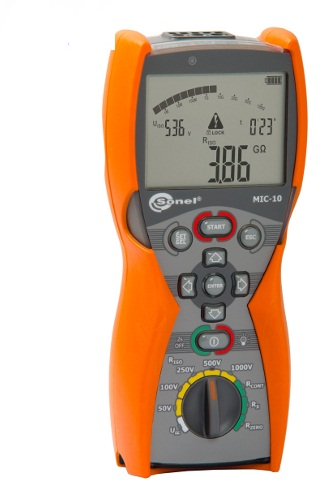

see also: press article about MIC-10 and MIC-30

• Insulation resistance measurement:
  - selected test voltage: any voltage in the 50...1000V range with 10V step,
  - automatic measurement in sockets with the UNI-Schuko adapter with possibility of configuring pairs of measured cables,
  - continuous indication of insulation resistance or leakage current,
  - automatic discharge of capacitance of tested object after the insulation resistance measurement,
  - acoustic signalling of five-second periods to facilitate obtaining time characteristics,
  - measured test times T1, T2 i T3 to measure one or two absorption coefficients in the 1... 600 sec. range,
  - indication of actual test voltage during the measurement,
  - protection against measuring live objects,
  - three-lead measurement.
• Continuity measurement of protective and equipotential conductors according to EN 61557-4 with the >200mA current
• Low-voltage circuit continuity and resistance measurement:
  - circuit resistance measurement (<1999 ) with the <15mA current,
  - quick sound signal if circuit resistance is below 30.

• Leakage current measurement.
• Capacitance measurement during the RISO measurement
• Measurement of alternating and direct voltages in the 0...600V range.
• 990 memory cells and wireless data transmission to a computer using the USB - OR-1 adapted.
• Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.
• Meters conform to EN 61557.
