Thiết bị đo chiều dày siêu âm 45MG

Đặc điểm nổi bật

MÔ TẢ45MG Ultrasonic Thickness Gage: Simple Operation, Rugged, and ReliableThe 45MG is an advanced ultrasonic thickness gage packed with standard measurement features and software options. This unique instrument is compatible with the complete range

MÔ TẢ

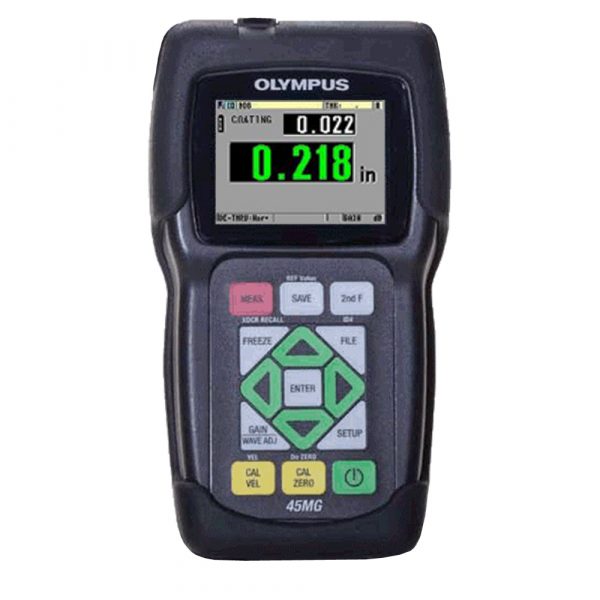

45MG Ultrasonic Thickness Gage:
Simple Operation, Rugged, and Reliable

The 45MG is an advanced ultrasonic thickness gage packed with standard measurement features and software options. This unique instrument is compatible with the complete range of Olympus dual element and single element thickness gage transducers, making this innovative instrument an all-in-one solution for virtually every thickness gage application.

Corrosion Measurements with Dual Element Transducers
Precision Measurements with Single Element Transducers

Standard Features

In its basic configuration the 45MG is a simple and straightforward gage that requires minimal operator training to tackle most common thickness gaging applications. With additional optional software options and transducers however, the 45MG can become significantly more advanced and take on applications well beyond that of a typical entry-level gage. Furthermore, most options are available individually at the time of purchase or can be added in the future as your needs change.

Compatible with full line of Olympus dual element transducers for thickness measurements on internally corroded metals
Min./Max. mode
Two Alarm modes
Differential mode
Time-based B-scan
Reduction Rate
Gain Adjust (standard, high, and low)
Password instrument lock

45MG with optional protective rubber boot and stand

Optional Features

From a simple corrosion gage to a multi-purpose precision thickness gage with only a few key strokes. The 45MG offers five code-activated software options that makes it one of the most versatile thickness gages in the industry.

Echo-to-Echo / THRU-COAT®:Using Echo-to-Echo, the true metal thickness is displayed and the thickness of the coating layer will be ignored. THRU-COAT measures metal and nonmetallic coating thicknesses, each adjusted for their correct sound velocities. There is no need to remove paint or coatings fromsurfaces.
Single Element:For very precise thickness measurements on many materials, including metals, plastics, composites, glass, and ceramics. Compatible with single element Microscan transducers ranging from 2.25 MHz to 30 MHz.
Single Element High Penetration:For thickness measurement on thick or highly attenuating materials such as fiberglass or cast metals. Compatible with single element Microscan transducers ranging from 0.5 MHz to 30 MHz. Included is the Single Element option.
Data Logger:The 45MG has a full-featured internal bidirectional alphanumeric data logger that is designed to easily store and transfer thickness readings and waveform data. Includes GageView™ interface program, a Windows-based application.
Live A-scan with Waveform Adjust:This optional Live A-scan mode allows users to view the ultrasound waveform (or A-scan) directly on the gage’s display, verify the thickness measurement, and make manual adjustments to gain and blanking settings to maximize measurement performance in challenging applications. This helpful option features Manual Gain Adjust, Extended Blanking, First Echo Blank, Range, and Delay.

Built for Tough Environments

Rugged, designed for IP67
Explosive Atmosphere: Safe operation as defined by Class I, Division 2, Group D, as found in the National Fire Protection Association Code (NFPA 70), Article 500, and tested using MIL-STD-810G, Method 511.4, Procedure I.
Shock tested using MIL-STD-810G, Method 516.5, Procedure I, 6 cycles each axis, 15 g, 11 msec Half sine.
Vibration tested using MIL-STD-810G, Method 514.5, Procedure I, Annex C, Fig. 6, general exposure: 1 hour each axis.
Wide operating temperature range
Optional protective rubber boot with gage stand

Indoor display setting, optional A-scan mode

Designed for Easy Operation

Simple keypad for right hand/left hand operation
Easy operator interface with direct access to most functions
Internal and removable MicroSD memory card storage
USB communication port
Optional alphanumeric data logger with 475,000 thickness readings or 20,000 waveforms
Default/Custom single element transducer setups (optional)
Password protected instrument lock
Color transflective QVGA display with indoor and outdoor color settings for superior clarity

Outdoor display setting, optional A-scan mode

Thông số kỹ thuật

MEASUREMENTS	DUAL ELEMENT TRANSDUCER MEASUREMENT MODE	Time interval from a precision delay after the excitation pulse to the first echo
	ECHO-TO-ECHO (OPTIONAL)	Time interval between two successive back-wall echoes to eliminate paint or coating thickness
	THRU-COAT® MEASUREMENT (OPTIONAL)	Measurement of true metal and coating thicknesses with a single back-wall echo (with D7906-SM, D7906-RM, and D7908 transducers)
	SINGLE ELEMENT TRANSDUCER MEASUREMENT MODES (OPTIONAL)	Mode 1: Time interval between the excitation pulse and the first back-wall echo Mode 2: Time interval between the delay line echo and the first back-wall echo (with delay or immersion transducers) Mode 3: Time interval between successive back-wall echoes following the first interface echo after the excitation pulse (with delay line or immersion transducers)
	THICKNESS RANGE	0.080 mm to 635 mm (0.003 in. to 25.0 in.) depending on material, transducer, surface conditions temperature, and selected configuration (Full range requires single element option)
	MATERIAL VELOCITY RANGE	0.508 mm/μs to18.699 mm/μs (0.020 in./μs to 0.7362 in./μs)
	RESOLUTION (SELECTABLE)	Low: 0.1 mm (0.01 in.) Standard: 0.01 mm (0.001 in.) Single Element option: 0.001 mm (0.0001 in.)
	TRANSDUCER FREQUENCY RANGE	Standard: 2.25 MHz to 30 MHz (-3 dB) High Penetration (Single Element option): 0.50 MHz to 30 MHz (-3 dB)
GENERAL	OPERATING TEMPERATURE RANGE	-10 °C to 50 °C (14 °F to 122 °F)
	KEYPAD	Sealed, color-coded keypad with tactile and audible feedback
	CASE	Impact-resistant and water-resistant, gasketed case with sealed connectors. Designed for IP67.
	DIMENSIONS (W X H X D)	Overall: 91.1 mm x 162 mm x 41.1 mm (3.59 in. x 6.38 in. x 1.62 in)
	WEIGHT	430.9 g (0.95 lb)
	POWER SUPPLY	3 AA batteries/USB power supply
	BATTERY LIFE OPERATING TIME	3 AA alkaline: 20 to 21 hours 3 AA NiMH: 22 to 23 hours AA Lithium: 35 to 36 hours
	STANDARDS	Designed for EN15317
DISPLAY	COLOR TRANSFLECTIVE QVGA DISPLAY	Liquid crystal display, display area 54.61 mm x 41.15 mm (2.15 in. x 1.62 in.)
	RECTIFICATION	Full wave, RF, half-wave positive, or half-wave negative (Waveform option)
INPUTS/OUTPUTS	USB	2.0 client
	MEMORY CARD	Maximum capacity: 2 GB removable microSD memory card
INTERNAL DATA LOGGER (OPTIONAL)	DATA LOGGER	The 45MG identifies, stores, recalls, clears, and transmits thickness readings, waveform images, and gage configuration information through USB or microSD.
	CAPACITY	475,000 thickness measurements or 20,000 waveforms with thickness measurements
	FILE NAMES, IDS, AND COMMENTS	32-character file names and 20-character alphanumeric location codes with four comments per location
	FILE STRUCTURE	Six standard or custom application-specific file structures
	REPORTS	On-gage reporting of summary with statistics, Min./Max.

Phụ kiện tiêu chuẩn

45MG digital ultrasonic thickness gage
AA alkaline batteries
2-step test block and couplant
USB cable
User’s manual on CD
Measurement features: Min./Max. mode, two alarm modes, Differential, mode, B-scan, Reduction Rate, Programmable Lock

Tùy chọn phần mềm

45MG-SE (U8147022): Single Element option to use single element transducers with frequency range of 2.25 MHz to 30 MHz.
45MG-HP (U8147023): Single Element High Penetration option to use single element transducers with frequency range of 0.5 MHz to 30 MHz.
45MG-EETC (U8147021): Echo-to-Echo and THRU-COAT®
45MG-WF (U8147019): Waveform option
45MG-DL(U8147020): Internal data logger including GageView interface program
