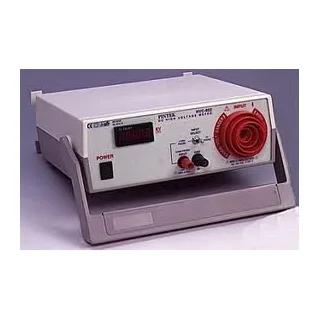

Thiết bị đo cao áp để bàn Pintek HVC-801

HVC-801 is a Electronic Instrument combine High Voltage Probe Calibrator and High Voltage probe meter in one.
Provides a small dimension, light weight, and convenient operation.
Compliant with CE, GS, UL regulation.
HVC-801 keep the max, output currence ~ 0.4mA; and Max. instantaneous short current ~ 15mA to prevent the occurrence of accident.
Provides a continuous adjustable output Voltage from 2KV to 40KV. and the loading effect ( for 1000M Ohm, 1/1000 High Voltage Probe ) less than 5%.
HVC-801 display by 4 1/2 Red LED easy to observe, High resolution 10V high Accuracy 0.3% make it very suit to use on QC, repairing, RD and education application.

HIGH VOLTAGE PROBE CALIBRATOR
Output Voltage:DC + 2KV to + 40 KV adjustable
Output Current:<= 0.4mA
Accuracy:+/- 0.3% +/- 2 digital
Display:4 1/2 digital 0.36" RED LED
Resolution:0.01 KV ( 10 V )
Power Discharge Time:
1/10 power residual at 4 sec after power off.
1/100 power residual at 8 sec after power off.
1/1000 power residual at 12 sec after power off.
HIGH VOLTAGE PROBE METER
For:1/1000 high voltage probe only
Input Voltage:<= +/- 200V DC ( after attun. )
Accuracy:+/- 0.3% +/- 2 digital + H.V. probe accuracy
Display:4 1/2 Digital 0.36" RED LED
Resolution:0.01 KV ( 10V )
POWER SOURCE:115V/230VAC +/-10% ; 50/ 60Hz
POWER CONSUMPTION:25W
FUSE:
Line Voltage Frequency Fuse
110V - 120V 50 / 60 Hz 600 mA
220V - 240V 50 / 60 Hz 300 mA
LIMITS OF OPERATION
0 oC ~ + 40 oC
0 ~ 80%? RH
STORAGE ENVIRONMENT
- 20 oC ~ + 60 oC
0 ~ 90 % RH
DIMENSION AND WEIGHT
270 x 95 x 310mm : 3.2 KGS
