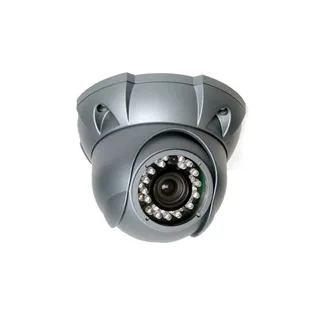

NEOSTECH NSO3-TDIR1040HVQ

Model

NSO3-TDIR1040HVQ

Signal System

NTSC

PAL

Scanning System

2:1 Interlace

Scanning Frequency(H)

15.734kHz

15.625kHz

Scanning Frequency(V)

59.94Hz

50Hz

Image Sensor

1/3" SONY Super HAD CCD

Sync. System

Internal

Total Pixels Number

811(H) x 508(V) 410K

795(H) x 596(V) 470K

Effective Pixels Number

768(H) x 494(V) 380K

752(H) x 582(V) 440K

Horizontal Resolution

540 TV lines

Video Output Level

1.0Vp-p (75§Ù, composite)

IR LED

40 Units Infrared LED, 20,000hrs 850nm

Lens

DC Auto Iris Vari-focal Lens (4 ~ 9mm)

Min. lllumination

0 Lux (IR LED on)

Electronic Shutter Speed

1/60~1/100,000sec

1/50~1/100,000sec

Operation Temp.

-10¡É ~ +50¡É

Focus Mode

Manual

White Balance

Auto

Supplied Voltage

12VDC ¡¾ 10%
