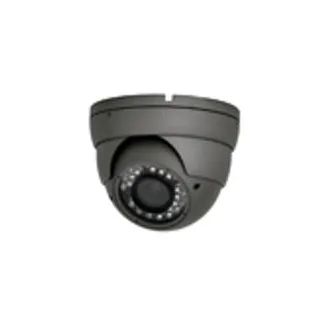

NEOSTECH NSO3-DIR1030V

Model

NSO3-DIR1030V

Signal System

NTSC

PAL

Scanning System

2:1 Interlace

Scanning Frequency(H)

15.734kHz

15.625kHz

Scanning Frequency(V)

59.94Hz

50Hz

Image Sensor

1/3" SONY Super HAD CCD

Sync. System

Internal

Total Pixels Number

537(H) x 505(V) 270K

537(H) x 597(V) 320K

Effective Pixels Number

510(H) x 492(V) 250K

500(H) x 582(V) 290K

Horizontal Resolution

420 TV lines

Video Output Level

1.0Vp-p (75§Ù, composite)

IR LED

30 Units Infrared LED, 20,000hrs 850nm

Lens

DC Auto Iris Vari-focal Lens (4 ~ 9mm)

Min. lllumination

0.1 Lux (IR LED on)

Electronic Shutter Speed

1/60~1/100,000sec

1/50~1/100,000sec

Operation Temp.

-10¡É ~ +50¡É

Focus Mode

Manual

White Balance

Auto

Supplied Voltage

12VDC ¡¾ 10%
