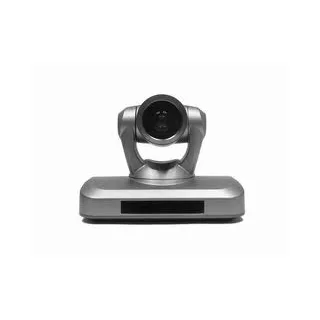

Minrray VHD-A910

● Video Transducer: 1/2.5 inch super quality HD CMOS transducer

● Image: Dynamic Image: 4:3    390,000 pixel

                                      16:9   207 million pixel

              Static Image: 4:3     270 million pixel

                                  16:9    210 million pixel

● Lens zoom: 10x optical zoom, f=4.5- 45.0mm, F1.8-2.2

● Wide angle lens: 0.7x wide angle lens, caliber 30mm

● Visual Angle: 5.4°(farness) --70°(nearness)

● Minimum Illumination: 10LUX

● White Balance: Auto/Sunlight/Cloudiness/Shade/fluorescence white balance mode

● Focus: Auto/Manual

● Iris: Auto/Manual

● Electronic Shutter: Auto

● Black light compensation: Auto

● S/N Ratio: 50dB

● Pan Rotation:   ±100 degree

● Tilt Rotation: ±30 degree

● Manual Control Speed:

 Pan speed: 0.5°- 80°/sec

 Tilt speed: 0.5°-80°/sec

● Preset Speed:

 Pan running: 80°/sec

Tilt running: 80°/sec

● Preset: 10 preset position

● Standard Definition Compound Video Output: RCA Jack, 1Vp-p, 75Ω unbalance.

● High Definition Interface: HD standard interface

● High Definition Interface: HD-SDI

● High Definition Interface: YpbPr

● Controller Signal Interface: 8 leads mini DIN

● Controller Signal Interface: Start bit: 1; Data bit: 8; Stop bit: 1; Baud Ratio: 9600bps

● Power supply interface:   HEC3800 power jack

● Power supply adapter: 12VDC/2A

● Input voltage:   12VDC(10.5-14VDC)

● Input power: 24W(MAX)
