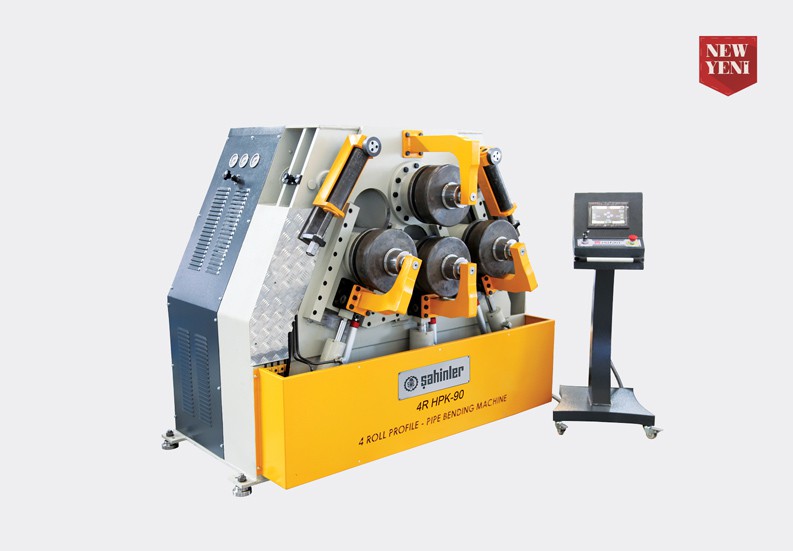

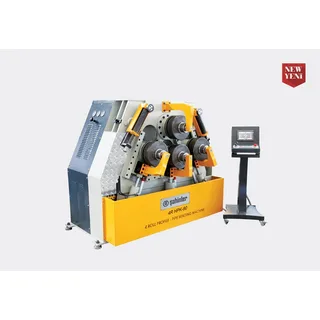

Máy uốn ống 4 trục Sahinler 4R HPK 90

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

MODEL4R HPK 90Shaft Diametermm90Rolls Diametermm260Shaft Lengthmm160Bending speedd/dk rpm6,37Number of motorized rollad./pcs.3Number of guide rolls axesad./pcs.2Motor powerkW5,5Machine weight(Standard)kg2800Machine Dimensions(LxWxH)mm1700x1450x12004R

MODEL		4R HPK 90
Shaft Diameter	mm	90
Rolls Diameter	mm	260
Shaft Length	mm	160
Bending speed	d/dk rpm	6,37
Number of motorized roll	ad./pcs.	3
Number of guide rolls axes	ad./pcs.	2
Motor power	kW	5,5
Machine weight(Standard)	kg	2800
Machine Dimensions(LxWxH)	mm	1700x1450x1200

		4R HPK 90
No.	Profile Type	Size	Min. Dia.	Notes
1		100x20 80x20 30x10	2000 800 300	Standard Rolls
2		125x25 60x5	600 300	Standard Rolls
3		45x45 15x15	500 380	Standard Rolls
4		Ø 50 Ø 15	500 380	Optional Rolls
5		Ø 100x2,5 Ø 15x1	1200 380	Optional Rolls
6		Ø 3”x5,48 Ø 1/2”x2,77	800 380	Optional Rolls
7		80x25x3 25x15x2	800 350	Optional Rolls
8		70x3 25x2	1300 400	Optional Rolls
9		80x80x8 30x30x3	800 450	Optional Rolls
10		70x70x7 30x30x3	700 450	Optional Rolls
11		80x9 25x3,5	800 280	Standard Rolls
12		70x8 25x3,5	800 280	Standard Rolls
13		80x9 30x4	800 300	Optional Rolls
14		UPN 140 UPN 120 UPN 100	1600 900 600	Standard Rolls*
15		UPN 140 UPN 120 UPN 100	1600 1000 800	Standard Rolls*
16		IPN 120 IPN 80	600 400	Optional Rolls*
