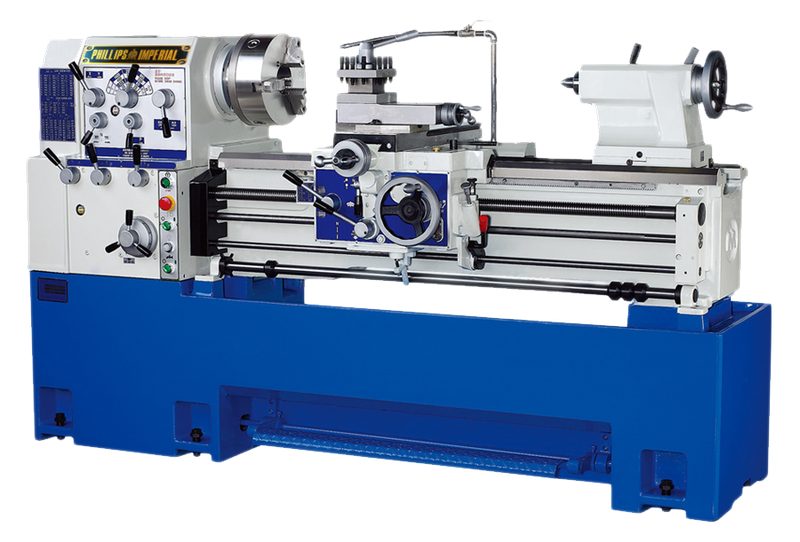

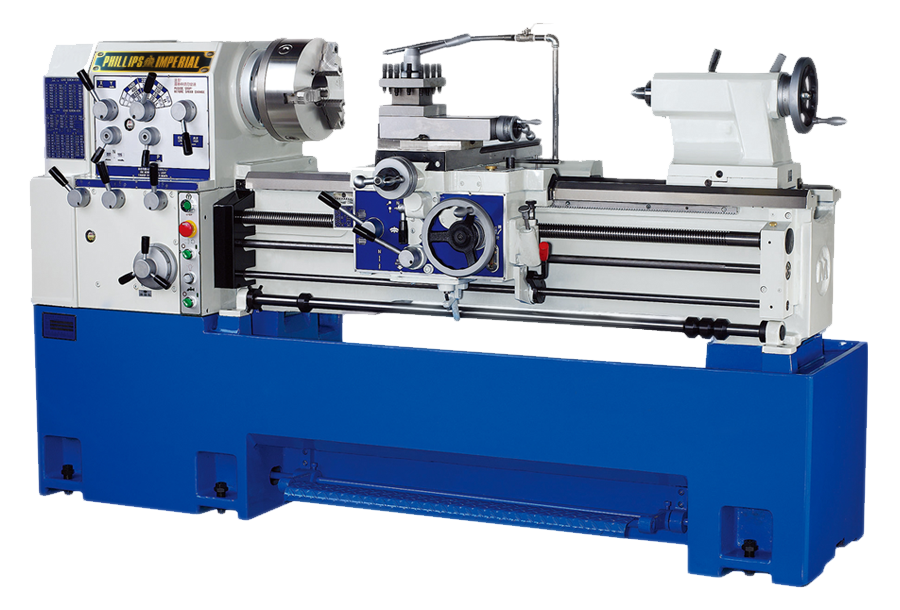

Máy tiện tốc độ cao S530 Series

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Máy tiện tốc độ cao S530 SeriesS530 SeriesSpecifications / ModelS530x560S530x760S530x1000S530x1500S530x2200Swing Over Bed520 mm (20-1/2")Swing Over Cross Slide330 mm (13")Center Height260 mm (10-1/4")Distance Between Centers560 mm (22")760 mm (30"

Máy tiện tốc độ cao S530 Series

S530 Series
Specifications / Model	S530x560	S530x760	S530x1000	S530x1500	S530x2200
Swing Over Bed	520 mm (20-1/2")
Swing Over Cross Slide	330 mm (13")
Center Height	260 mm (10-1/4")
Distance Between Centers	560 mm (22")	760 mm (30")	1000 mm (40")	1500 mm (60")	2200 mm (90")
Swing Over Gap	740 mm (29-1/8")
Width Of Bed	300 mm (11-4/5")
Spindle Nose	ASA D1 - 6 / D1 - 8 ( Opt. )
Spindle Bore	80 mm (3")
Taper of Spindle Bore	MT 6 / MT 7 Opt.
Range of Spindle Speed	20 ~ 2000 R.P.M. ( 12 steps )-spindle bore :58mm /40 ~ 2000 R.P.M. ( 12 steps )-spindle bore :80mm
Inch Threads Range	4 ~ 56 T.P.I.
Metric Threads Range	P 0.5 ~ P 7
Longitudinal Feeds Range	0.05 ~ 0.82 mm (0.002-0.032")
Cross Feeds Range	0.02 ~ 0.4 mm (0.001-0.0094")
Leadscrew Diameter	35 mm (1-1/3")
Leadscrew Pitch	4 TPI or 6 mm
Taper of Tail Center	MT 4
Tail Spindle Travel	150 mm (5-7/8")
Tail Spindle Diameter	68 mm (2-2/3")
Main Drive Motor	7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. )
Coolant Pump	1/8 HP (0.1KW)
Compound Rest Travel	125 mm (4-7/8")
Cross Slide Travel	275 mm (10-4/5")
Machine Dimensions (cm)	165 x 81 x 125	189 x 81 x 125	215 x 81 x 125	265 x 81 x 125	342 x 81 x 125
Packing Dimension (cm)	182 x 95 x 168	200 x 95 x 168	228 x 95 x 168	279 x 95 x 168	355 x 95 x 168
Net Weight	1580	1760	1810	2135	2565
Gross Weight	1680	1860	1910	2285	2675
