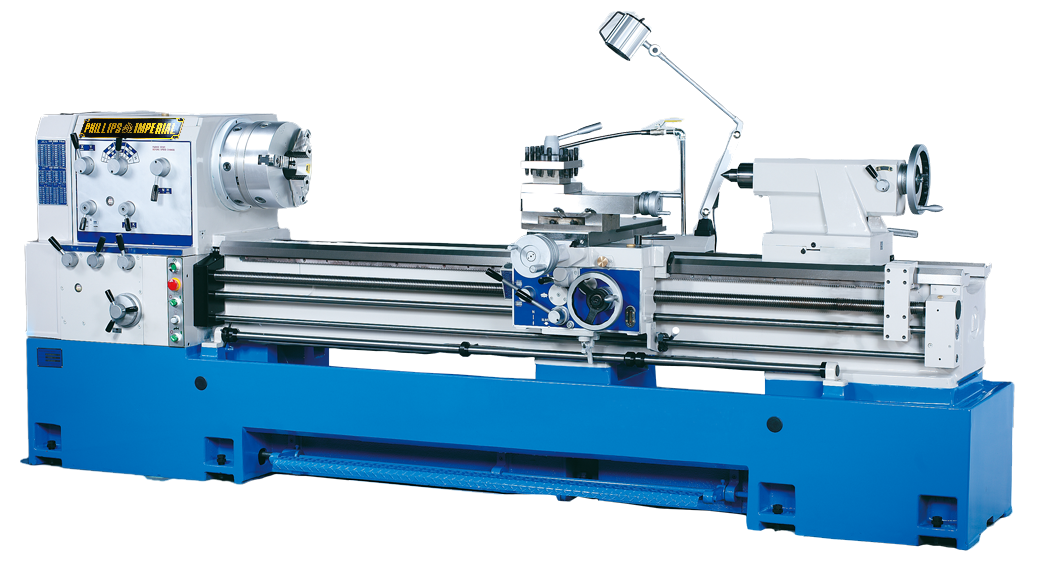

Máy tiện tốc độ cao M560 Series

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Máy tiện tốc độ cao M560 SeriesM560 SeriesSpecifications / ModelM560x1000M560x1500M560x2200Swing Over Bed560 mm (22")Swing Over Cross Slide340 mm (13-1/3")Center Height280 mm (11")Distance Between Centers1000 mm (40")1500 mm (60")2200 mm (90")Swing

Máy tiện tốc độ cao M560 Series

M560 Series
Specifications / Model	M560x1000	M560x1500	M560x2200
Swing Over Bed	560 mm (22")
Swing Over Cross Slide	340 mm (13-1/3")
Center Height	280 mm (11")
Distance Between Centers	1000 mm (40")	1500 mm (60")	2200 mm (90")
Swing Over Gap	788 mm (31")
Width Of Bed	350 mm (13-3/4")
Spindle Nose	ASA D1 - 8
Spindle Bore	85 mm (3-1/3") / 105 mm (4") Opt. )
Taper of Spindle Bore	MT 7
Range of Spindle Speed	15 ~ 1500 R.P.M. / 14 ~ 1380 R.P.M. ( 12 steps )
Inch Threads Range	2 ~ 56 T.P.I.
Metric Threads Range	P 0.5 ~ P 14
Longitudinal Feeds Range	0.05 ~ 0.82 mm (0.002-0.032")
Cross Feeds Range	0.02 ~ 0.4 mm (0.001-0.0094")
Leadscrew Diameter	38 mm (1-1/2")
Leadscrew Pitch	4 TPI or 6 mm
Taper of Tail Center	MT 5
Tail Spindle Travel	165 mm (6-1/2")
Tail Spindle Diameter	75 mm (2-7/8")
Main Drive Motor	7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. )
Coolant Pump	1/8 HP (0.1KW)
Compound Rest Travel	200 mm (7-7/8")
Cross Slide Travel	300 mm (11-4/5")
Machine Dimensions (cm)	229 x 99 x 125	278 x 99 x 125	353 x 99 x 125
