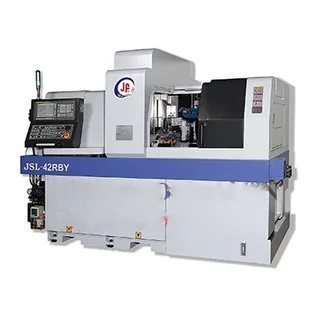

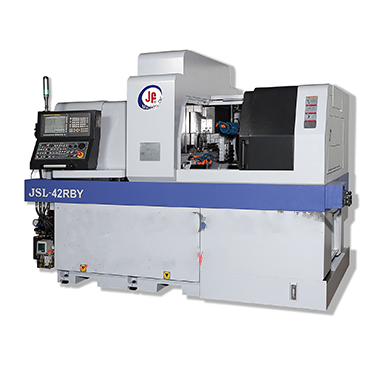

MÁY TIỆN KIỂU THỤY SỸ JSL-42RB

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

THÔNG SỐ KỸ THUẬTITEMUNITJSL-32RBJSL-32RBYJSL-42RBJSL-42RBYJSL-51RBJSL-51RBYMax. turning diameter of main spindlemm324251Max. turning diameter of sub-spindlemm324251Max. turning length(rotating guide bushing)mm300Max. turning length(non-guide bushing

THÔNG SỐ KỸ THUẬT

ITEM	UNIT	JSL-32RB	JSL-32RBY	JSL-42RB	JSL-42RBY	JSL-51RB	JSL-51RBY
Max. turning diameter of main spindle	mm	32		42		51
Max. turning diameter of sub-spindle	mm	32		42		51
Max. turning length(rotating guide bushing)	mm	300
Max. turning length(non-guide bushing)	mm	130
Max. drilling/tapping capacity of sub spindle	mm	Ø13 / M10				Ø16 / M12
Max. drilling/tapping capacity of main spindle	mm	Ø10 / M8				Ø26 / M16
Max. cross drilling/tapping capacity	mm	Ø10 / M6				Ø12 / M10
O.D. tool holder	pcs	6 (口16mm) / 5 (口20mm)
I.D. tool holder	pcs	5 / Ø25mm
S1 cross live tool holder	pcs	6 (ER-20)
Face drills of sub-spindle	pcs	4	8	4	8	4	8
Controlled axes (Incl. C-axis)	pcs	7	8	7	8	7	8
Main/sub-spindle bore	mm	Ø34		Ø44		Ø52
Max. speed of main/sub-spindle	rpm	7000		6000		4500
X1/Z1/Y1/X2/Z2/Y2 axis rapid traverse	m/min	24
Max. speed of S1 cross drilling	rpm	4000
S1cross tooling drive motor	KW	1.6				2.5
S2 face tooling drive motor	KW	0.75				2.5
Max. speed of S2 drill	rpm	4000
Main spindle motor	KW	5.5 / 7.5				11	15
Sub spindle motor	KW	5.5 / 7.5				7.5	11
X1/Z1 axis motor	KW	1.4				2.5
Y1/X2/Z2 axis motor	KW	0.75				2.5
Y2 axis motor	KW	non	0.75	non	0.75	non	2.5
Coolant pump motor	KW	1.29				0.54
Power required	KVA	30
Lubrication oil capacity	L	2
Coolant tank capacity	L	250(100%)
Machine dimensions(L x W x H)	mm	3173x1695x2146
Weight	KG	4900	4920	4900	4920	5450
