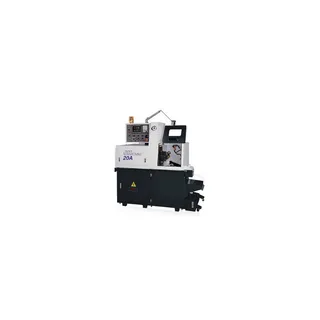

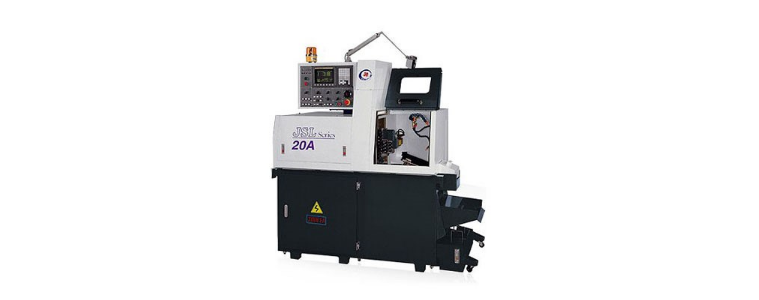

MÁY TIỆN KIỂU THỤY SỸ JSL-20A

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ITEMUNIT2020AMax. turning dia. of main spindlemm2020Max. turning dia. of sub spindlemm--Max turning length (Fixed guide bush)mm200200Max. turning length (Rotary guide bush)mm85 (optional:150)85 (optional:150)Max. turning length (Non guide bush

ITEM	UNIT	20	20A
Max. turning dia. of main spindle	mm	20	20
Max. turning dia. of sub spindle	mm	-	-
Max turning length (Fixed guide bush)	mm	200	200
Max. turning length (Rotary guide bush)	mm	85 (optional:150)	85 (optional:150)
Max. turning length (Non guide bush)	mm	45	45
Max. drilling capacity of main spindle	mm	10	10
Max. drilling capacity of sub spindle	mm	-	-
Max. tapping capacity of main spindle		M8	M8
Max. tapping capacity of sub spindle		-	-
Max. cross drilling capacity	mm	-	10
Max. cross tapping capacity		-	M6
No. of external turning tools	pcs	12	8
No. of internal turning tools	pcs	5	5
No. of cross drillings	pcs	-	4 (optional:7)
Face tool holder (Sub~spindle)	pcs	-	-
Size of tool	mm	12x12x90	12x12x90
No. of axis controls		3 (X/Y/Z)	4 (X/Y/Z/C)
Bore of spindle	mm	29	29
Spindle speed range	rpm	200~8000	200~8000
Rapid traverse X / Z	m/min	24	24
Main spindle motor	kw	3.7	3.7
Sub spindle motor	kw	-	-
X1 / Z1 motor	kw	0.5 / 0.75	0.5 / 0.75
Y-Axis motor	kw	0.75	0.75
Cross drilling motor	kw	-	0.5
End drilling motor	kw	-	-
X2 / Z2 motor	mm	-	-
Coolant motor	kw	0.375	0.375
Power Requirement	kw	10 KVA	10 KVA
Machine dimensions	mm	2015x1040x2210	2015x1040x2210
Weight	kg	1800	1800
