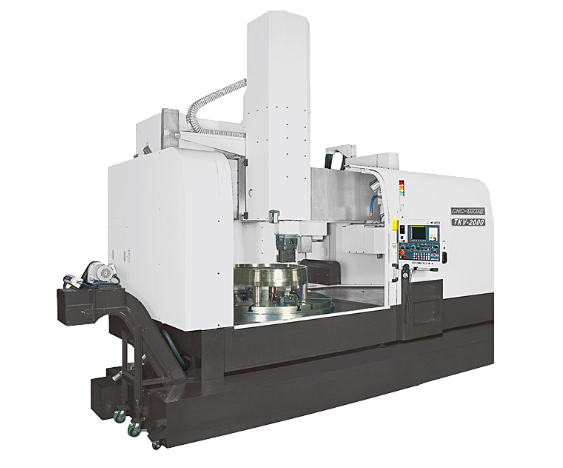

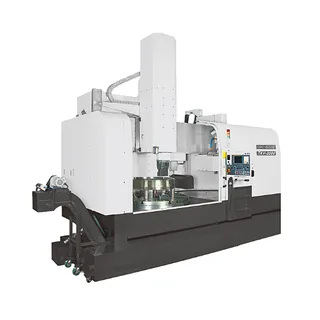

Máy tiện đứng CNC Đài Loan TKV-1100M

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Thông số kỹ thuật máy tiện TakangModelTKV-1100TKV-1100MTKV-1600TKV-1600MCapacityMax. swing diameter1200 mm (47. 2″)1600 mm (62. 9″)Max. turning diameter1200 mm (47. 2″)1600 mm (62. 9″)Distance from ram to table925 mm (36. 4″) / OPT. 500-1100 mm (19.

Thông số kỹ thuật máy tiện Takang

Model		TKV-1100	TKV-1100M	TKV-1600	TKV-1600M
Capacity	Max. swing diameter	1200 mm (47. 2″)		1600 mm (62. 9″)
	Max. turning diameter	1200 mm (47. 2″)		1600 mm (62. 9″)
	Distance from ram to table	925 mm (36. 4″) / OPT. 500-1100 mm (19. 6″-43. 3″)		650-1450 mm (25. 5″-57″)
	Max. turning height	650 mm (25. 5″) / OPT. 800 mm (31. 4″)		1200 mm (47. 2″)	1170 mm (46. 1″)
	Max. workpiece weight	3500 kgs		5000 kgs
Spindle	Table diameter (Manual chuck)	1000 mm (39. 3″)		1250 mm (49. 2″)
	Range of table speed	3 – 400 rpm		3 – 300 rpm
	Change gear speed	2 Steps		2 Steps
	Spindle nose	–		–	–
	Driving tool spindle speed	–	50 – 2250 rpm	–	50 – 2250 rpm
ATC	Number of tool station	12		12 / OPT. 16	16
	Tool size	25 mm (0.9”), 32 mm (1. 2”)
	Cross-section of ram	200 x 200 mm (7. 8″ x 7. 8″)	OPT. 250 x 250 mm (9. 8″ x 9. 8″)
Feed	Rapid rate (X Axis)	10 M/min		10 M/min
	Rapid rate (Z Axis)	10 M/min		10 M/min
	Horizontal travel (X Axis)	-100 + 800 mm (-3. 9″+31. 4″)		-200 + 950 mm (-7. 8″+37.4″)
	Vertical travel (Z Axis)	700 mm (27. 6″)		900 mm (35. 4″)
	Cutting feed fate	0.001 – 500 mm/rev		0.001 – 500 mm/rev
	Feed override	0 – 150 %		0 – 150 %
	Cross – rail travel	Fixed / OPT. 200 x 3 steps		800 (200 x 4 steps)
	CNC Controller System	Fanuc 0iTF		Fanuc 0iTF
Motor	Spindle motor (Cont. / 30 min)	30 / 37 kw		37 / 45 kw
	Feed motor (X / Z aixs)	4 / 4 kw		7 / 7 kw
	Driving tool motor	–	AC 11 / 15 kw	–	AC 11 / 15 kw
	Power requirement	75 KVA	90 KVA	75 KVA	90 KVA
Machine Size	Floor space (L x W)	4060 x 4020 mm		6500 x 4900 mm
	Max. height	4000 mm	4550 mm	5200 mm	5650 mm
	Net. weight	17800 kgs	18600 kgs	24500 kgs	25300 kgs
