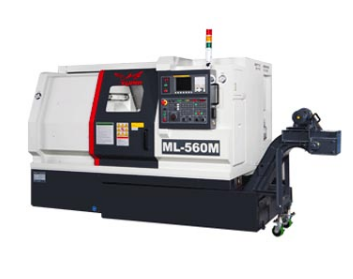

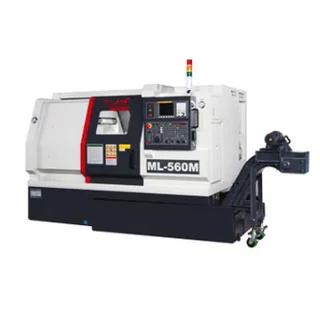

Máy tiện CNC loại lớn ML-560M

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ITEMML-560MStandardC axisSwingover bedØ560 mmSwing over saddleØ420 mmDistance between center750 mmMax machining diaØ320 mmØ300 mmMax machining length570 mmSland angle of bed300TRAVELX axis190(160+30) mm190(150+40) mmY axis---Z axis610 mmC axis--

ITEM	ML-560M
	Standard	C axis
Swingover bed	Ø560 mm
Swing over saddle	Ø420 mm
Distance between center	750 mm
Max machining dia	Ø320 mm		Ø300 mm
Max machining length	570 mm
Sland angle of bed	30⁰
TRAVEL
X axis	190(160+30) mm	190(150+40) mm
Y axis	---
Z axis	610 mm
C axis	---
SPINDLE
Spindle speed	STD 6000 rpm (A2-5) OPT 4500 rpm (A2-6)
Spindle nose	A2-5 OPT A2-6
Spindle bore diameter	Ø55 OPT Ø62Ø76
Draw bar	Ø52 OPT Ø52 Ø65
Chuck diameter	Ø6” OPT Ø8”
TURRET
Turret type	Hydraulic OPT Servo	Live tooling
Stations	10	12
Square tool shank	25x25 mm	20x20 mm
Boring bar shank dia	Ø40 mm	Ø32 mm
Indexing time (0-180)	2.0 s	0.85 s
LIVE TOOLING
Spindle speed	---	5000 rpm
FEED RATE
Rapid traverse	X30 Z30 m/min
TAILSTOCK
Quil dia	Ø65 mm
Quill bore taper	MT4
Quill travel	50 mm
MOTORS
Main spindle	7.5/11KW
Live tool	---	α 2/10000
X/Z axis servo motor	X: 1.2 Kw Z 1.2 Kw
Hydraulic oil pump	0.745 Kw
Chip conveyor	0.2 Kw
Coolant pump	0.96 Kw
ACCURACY
Positioning	±0.004 mm
Repeatability	±0.003 mm
Packing dimension	4040x2280x2180 mm
Net Weight	3660 kg
