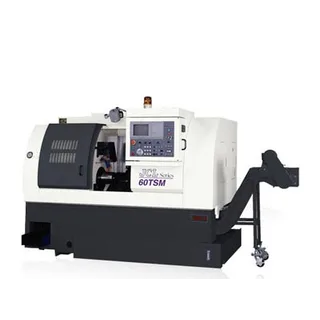

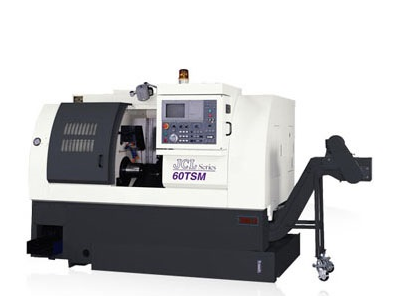

MÁY TIỆN CNC JINN FA JCL-60TSM

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

THÔNG SỐ KỸ THUẬTITEMUNITJCL-52TS / 60TSJCL-52TSM / 60TSMMax. swing over bedmmØ590Ø590Max. turning diametermmØ395Ø395Main-spindle max. turning diametermmØ240Ø240Sub-spindle max. turning diametermmØ150Ø150Max. turning lengthmm180235Max part catch

THÔNG SỐ KỸ THUẬT

ITEM	UNIT	JCL-52TS / 60TS	JCL-52TSM / 60TSM
Max. swing over bed	mm	Ø590	Ø590
Max. turning diameter	mm	Ø395	Ø395
Main-spindle max. turning diameter	mm	Ø240	Ø240
Sub-spindle max. turning diameter	mm	Ø150	Ø150
Max. turning length	mm	180	235
Max part catch length		80	80
Main-spindle max. bar capacity	mm	Ø50 / Ø60	Ø50 / Ø60
Sub-spindle max. bar capacity	mm	Ø42	Ø42
Main-spindle bore diameter	mm	Ø75	Ø75
Sub-spindle bore diameter	mm	Ø55.5	Ø55.5
Main-spindle nose		A2-6	A2-6
Sub-spindle nose		A2-5	A2-5
Spindle speed range	rpm	45~3500	45~3500
Spindle motor	kw	15	15
Number of tool stations		12	12
Max. stroke X1	mm	135	135
Max. stroke Z1	mm	225	280
Max. stroke Z2	mm	310	310
Rapid traverse X1	m / min	16	16
Rapid traverse Z1	m / min	20	20
Rapid traverse Z2	m / min	16	16
Turret indexing time	sec	0.3	0.3
Machine design	deg	30°	30°
Slide way type		Linear guide way	Linear guide way
Main-spindle hydraulic chuck	inch	8”	8”
Sub-spindle hydraulic chuck	inch	6”	6”
Turning tool diameter	mm	□20	□20
Boring tool diameter	Mm	Ø32	VDI 30
Driven tool motor power / 30min	kw	-	2.2
Sub-spindle motor	kw	5.5	5.5
Hydraulic motor	kw	2	2
Lubrication motor	w	3.5	3.5
Power requirement	kva	26	30
Coolant tank capacity	L	140L (85%)	140L (85%)
Machine dimensions (LxWxH)	mm	2695x1810x1950	2695x1810x1950
Weight	kg	4150	4230
