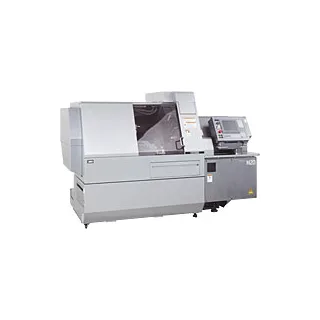

Máy tiện CNC Cincom M20III

Model

M20III

Maximum machining diameter

Φ20mm

Maximum machining length

320mm

Maximum front drilling diameter

Φ10mm

Maximum front tapping size(Tap / Die)

M8

Spindle through-hole diameter

Φ24mm

Main spindle speed

10,000min^-1

Maximum drilling diameter in the rotary gang tool

Φ7mm

Maximum tapping diameter in the rotary gang tool

M6

Spindle speed of the rotary gang tool

5,000min^-1

Maximum chuck diameter of back spindle

Φ20mm

Max. Protrusion length of the back spindle workpiece

145mm

Maximum drilling diameter in back machining process

Φ8mm

Maximum tapping diameter in back machining process

M6

Back spindle speed

8,000min^-1

Number of tools to be mounted

22＋α

Tool size

Bite

□16mm

Rapid rate

X1 axis

20m/min

Y1 axis

20m/min

Z1 axis

20m/min

X2 axis

20m/min

Y2 axis

－

Z2 axis

20m/min

X3 axis

20m/min

Z3 axis

20m/min

Motors

Spindle drive

2.2/3.7KW

Tool spindle drive ( gang tool post)

0.75KW

Tool spindle drive (turret)

0.75/1.5KW

Back spindle drive

0.75/1.5KW

Coolant Oil

0.4KW

Input power capacity

8KVA

Center height

1,100mm

Weight

2,950Kg
