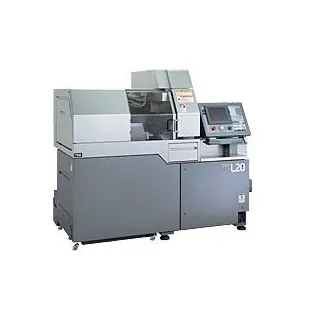

Máy tiện CNC Cincom L20I

Model

L20I

Maximum machining diameter

Φ20mm

Maximum machining length

200mm

Maximum front drilling diameter

Φ10mm

Maximum front tapping size

 (Tap / Die)

M8

Spindle through-hole diameter

Φ24mm

Main spindle speed

Max.10,000min^-1

Max.drilling diameter in the rotary gang tool

Φ7mm

Max.tapping diameter in the rotary gang tool

M6

Rotary spindle speed

Max.
5,000min^-1

Maximum chuck diameter of back spindle

－

Max. Protrusion length of the back spindle workpiece

－

Maximum drilling diameter in back machining process

－

Maximum tapping diameter in back machining process

－

Back spindle speed

－

Number of tools to be mounted

11

Tool size

Bite

□12mm , □13mm

Rapid rate

All axis

32m/min

Motors

Spindle drive

2.2/3.7KW

Tool spindle drive

0.75KW

Back spindle drive

－

Coolant Oil

0.4KW

Input power capacity

8KVA

Center height

1,050mm

Weight

2,000Kg
