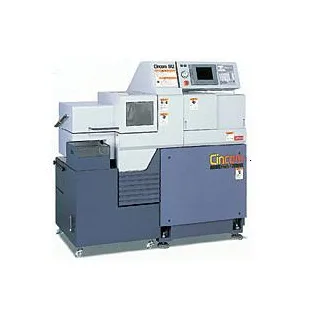

Máy tiện CNC Cincom B12IIN

odel

B12IIN

Maximum machining diameter

Φ12mm

Maximum machining length

135mm

Maximum front drilling diameter

Φ6mm

Maximum front tapping size(Tap / Die)

M6

Spindle through-hole diameter

Φ14mm

Main spindle speed

Max.12,000min^-1

Maximum drilling diameter in the rotary gang tool

Φ5mm

Maximum tapping diameter in the rotary gang tool

M4

Rotary spindle speed of the gang tool

Max.
4,500min^-1

Maximum chuck diameter of back spindle

－－－

Max. Protrusion length of the back spindle workpiece

－－－

Maximum drilling diameter in the back machining process

－－－

Maximum tapping diameter in the back machining process

－－－

Back spindle speed

－－－

Number of tools to be mounted

10

Tool size

Bite

□10mm

Rapid rate

X1 axis

21m/min

Y1 axis

21m/min

Z axis

15m/min

A2 axis

－－－

Motors

Main spindle drive

1.5/2.2KW

Tool spindle drive

0.4KW

Back spindle drive

－－－

Cutting Oil

0.18KW

Input power capacity

4KVA

Center height

1,000mm

Weight

950Kg
