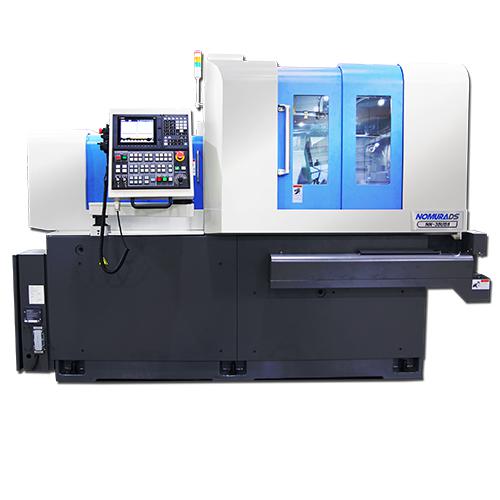

Máy tiện cấp phôi tự động NOMURADS NN-38UB8

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ItemsSpecificationSpecification ValueStandard AccessoriesMachining capacityMax. machining diameterФ38mmI.D. tool unitMax. machining length260mm / 1chuckCross drill unitMax. parts unloading length115mmManual pulse generator(MPG)37PSpindleMain spindle

Items	Specification	Specification Value	Standard Accessories
Machining capacity	Max. machining diameter	Ф38mm	I.D. tool unit
	Max. machining length	260mm / 1chuck	Cross drill unit
	Max. parts unloading length	115mm	Manual pulse generator(MPG)37P
Spindle	Main spindle through-hole diameter	Ф43mm	Coolant unit
	Spindle rpm (Main/Sub)	Max. 8,000rpm	Rotary guide bush
	Sub spindle chucking diameter	Ф38mm	Tool holder
Tool	Max. number of tools	30	Drill holder
	Max. machining drill	Ф13/10mm	Main : Chuck sleeve /Spring/Spindle cap(1set)
	Max. machining tap	M12/M10	Sub : Chuck sleeve /Spring/Spindle cap(1set)
Main	O.D. tool	5 (□20X150mm max)	Automatic power turn-off device
	I.D. tool	5 (ER16X3 + ER20X2)	Automatic oiling device (level detector attached)
	Cross drill	5 (ER20)	Cuttign oil device (Main/Sub)
	Cross drill rpm	Max. 6,000rpm	Coolant failure detector
	Long drill	2EA (Ф13)	Overload detection function
SUB	I.D. tool	3 (ER20X2 + ER16X1)	Door interlock switch
	I.D. eccentric	3 (ER20)	Working light (LED)
	Cross drill	-	Parts conveyor
	I.D. drill rpm	Max. 6,000rpm	Parts catcher
Feed	Rapid feed rate	36m/min	Levelling pad
	Min. command unit	0.0001mm	Signal warning light - 3 stage
	C axis Min. command unit (Main, Sub)	0.0001°	Display language (CHN/ENG/FRA/GER/ITA/JPN/KOR/POL/RUS/SPA)
Motor	Main spindle motor	7.5/5.5kW	Long drill holder
	Cross drill motor	1.5kW	Chip conveyor & Chip box
	Sub spindle motor	5.5/3.7kW	Optional Accessories
	$2 cross drill motor	0.9kW	E3 UNIT
	Y1,Z1,X2.Z2 axis feed motor	0.5kW / 1.4kW	Fixed guide bush
	X1,Y2 axis feed motor	1.0kW / 1.4kW	Tap breakage detector (Main, Sub)
	Coolant pump (Main, Sub)	0.9kW + 0.25kW	Tool presetter
	Lubricant pump	0.003kW	Tool air blow
Dimensions and etc.	Main spindle center height	1,160mm	Rear ejection unit (Ф36mm or less)
	Input power capacity	40KVA	Spindle tube liner for small part
	Air pressure, flow rate	0.6MPa.35L/min	Large-sized lubricant pump 1.8ℓ
	Coolant tank	370L(보조탱크포함)	Medium / High pressure coolant
	WxDxH	2,660x1,528x2,038 mm	Oil mist collector
	Weight (Options included)	3,600kg	Custom colors
NC	NC MITSUBISHI	M80	Tooling
	NC display	10.4 Color TFT LCD
	Memory capacity	500KB
	Number of tool offset	256sets
	Background edit function
	C axis function (Main, Sub spindle)
	User macro function
	Nose R compensation
	Corner chamfering /Corner rounding
	Fixed cycle
	Complex fixed cycle
	Geometric commands
	Controller manual
	Serial in / Output interface
	CF card / USB interface
