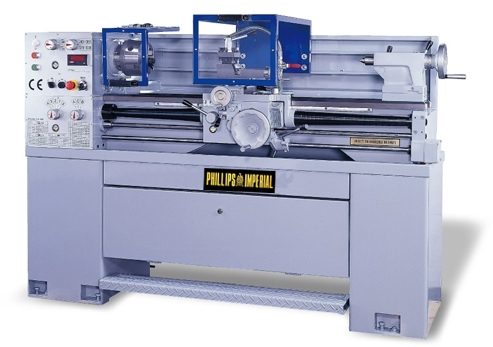

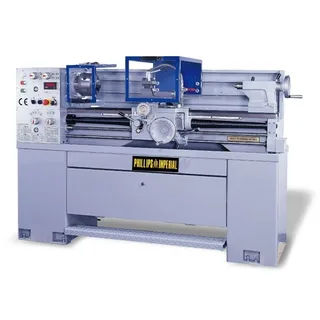

Máy tiện bàn PL-1224BV

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Thông số kĩ thuật: Máy tiện bàn PL-1224BV MODELPL-1224BVPL-1236BVPL-1340BVSwing over Bed306mm 12in330mm 13inSwing over Cross Slide186mm 7-5/16in210mm 8-5/16inHeight of Center150mm 6in165mm 6-1/2inDistance Between Centers610mm 24in915mm

Thông số kĩ thuật: Máy tiện bàn PL-1224BV

MODEL		PL-1224BV	PL-1236BV	PL-1340BV
Swing over Bed		306mm 12in		330mm 13in
Swing over Cross Slide		186mm 7-5/16in		210mm 8-5/16in
Height of Center		150mm 6in		165mm 6-1/2in
Distance Between Centers		610mm 24in	915mm 36in	1000mm40in
BED
Width of Bedways		190mm7-1/2inch
Total Length of Bed Gap Type		1220mm 48in	1525mm 60in	1625mm 64in
Gap Type	Swing over Gap	445mm 17-1/2in		470mm 18-1/2in
	Length of gap	240mm9-1/2inch
	Width in front of face plate	150mm6inch
SPINDLE
Spindle nose mounting		D1-4 Camlock
Spindle bore		40mm 1-9/16inch
Taper of spindle bore		M.T. #5
Number of spindle speeds		Variable speed change
Range of spindle speeds		40-2000 R.P.M.
TOOL SLIDE
Total travel of cross slide		170mm 6-3/4inch
Total travel of top slide		90mm 3-1/2inch
Max. size cutting tool		13mm 1/2inch
TAIL STOCK
Total travel of tailstock barrel		100mm 4inch
Taper in tailstock barrel		M.T. #3
Diameter of barrel		40mm 1-9/16inch
THREADS
Lead screw diameter & pitch		Dia. 22mm Pitch 4mm, 7/8inch 8TPI
Inch threads		3-24 TPI (8Nos) for metric system 2-56 TPI (34Nos) for inch system
Metric pitches		0.5-10mm (21Nos) for metric system 0.5-12mm (33Nos) for inch system
FEEDS
Feed rod diameter		Dia. 19mm 3/4inch
Longitudinal feeds		0.040-0.800mm/rev. (21) for metric system 0.0016-0.0460in/rev. (25) for inch system
Cross feeds		0.020-0.400mm/rev. (21) for metric system 0.0005-0.0150in/rev. for inch system
MOTOR
Main spindle motor		2HP 1.47KW		3HP 2.2KW
Coolant pump motor		1/8HP 0.1KW
Machine net weight		500kgs	550kgs	600kgs
