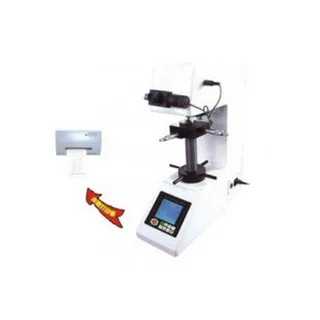

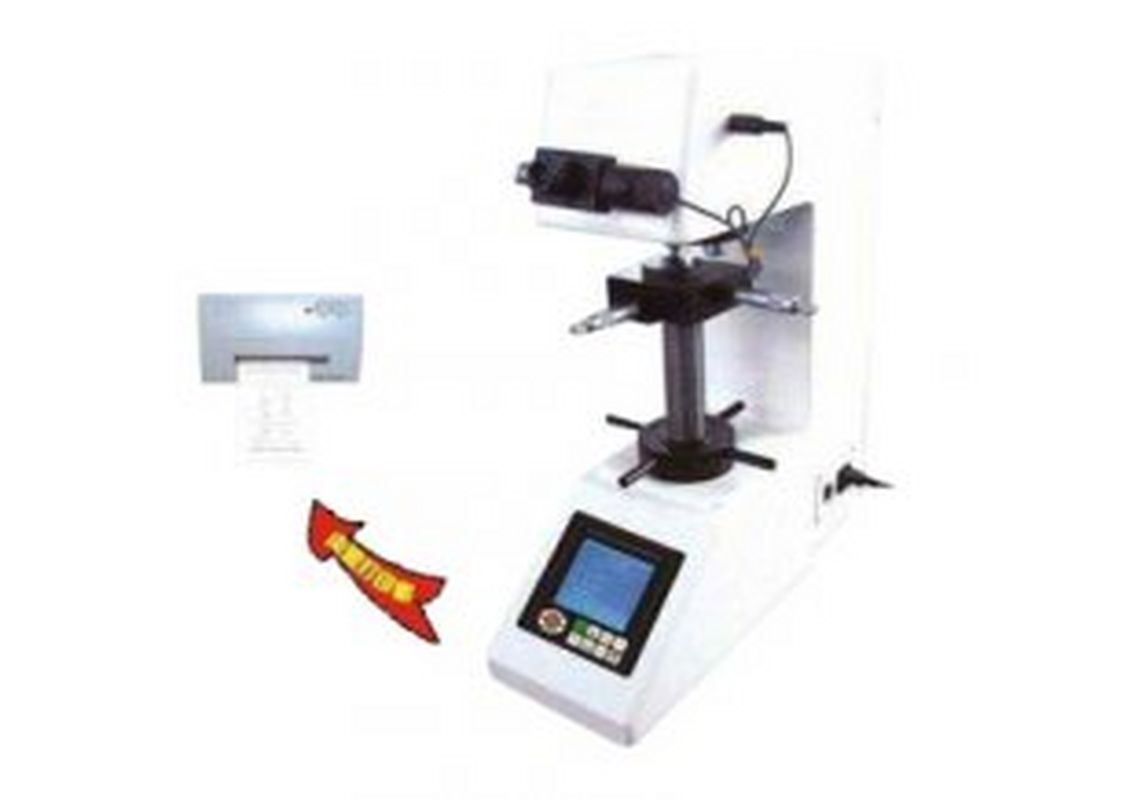

Máy thử độ cứng Vickers HUATEC MHV-30

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Type MHV-30 Testing Forces N4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2 KGF0.5, 1, 2, 2.5, 3, 5, 10, 20, 30Carriage ControlAutomatic(loading/holding-up of loading /unloading)Holding Time (0~60)sAmplification of the microscope

Type		MHV-30
Testing Forces	N	4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2
	KGF	0.5, 1, 2, 2.5, 3, 5, 10, 20, 30
Carriage Control		Automatic(loading/holding-up of loading /unloading)
Holding Time		(0~60)s
Amplification of the microscope		100X, 400X 100X, 200X
Min. graduation value of the test drum wheel		0.0625um 0.125um
Testing field		1HV~2967HV
Lens/Indenter switch		With Motorized Turret
Dimension of the X-Y table		Without
Movement field of the X-Y table		Without
Max. Height of the specimen		170mm
Max. width of the specimen		130mm
Light source		Cold light source
Power		110V/220V, 60/50HZ
Objective		The objective 10^x, 20^x, 40^x can be selected according to user’s requirement
Standard accessories		X Largest test table, “V”Shape test table
		10^X Digital Micro Lens, Level, Adjustable Screw, Vicker Hardness Block, RS232 Interface Line (supply according to modle of instrument)
Dimension		535X225X580mm
Weight		Gross weight: 60Kg Net weight:50Kg
