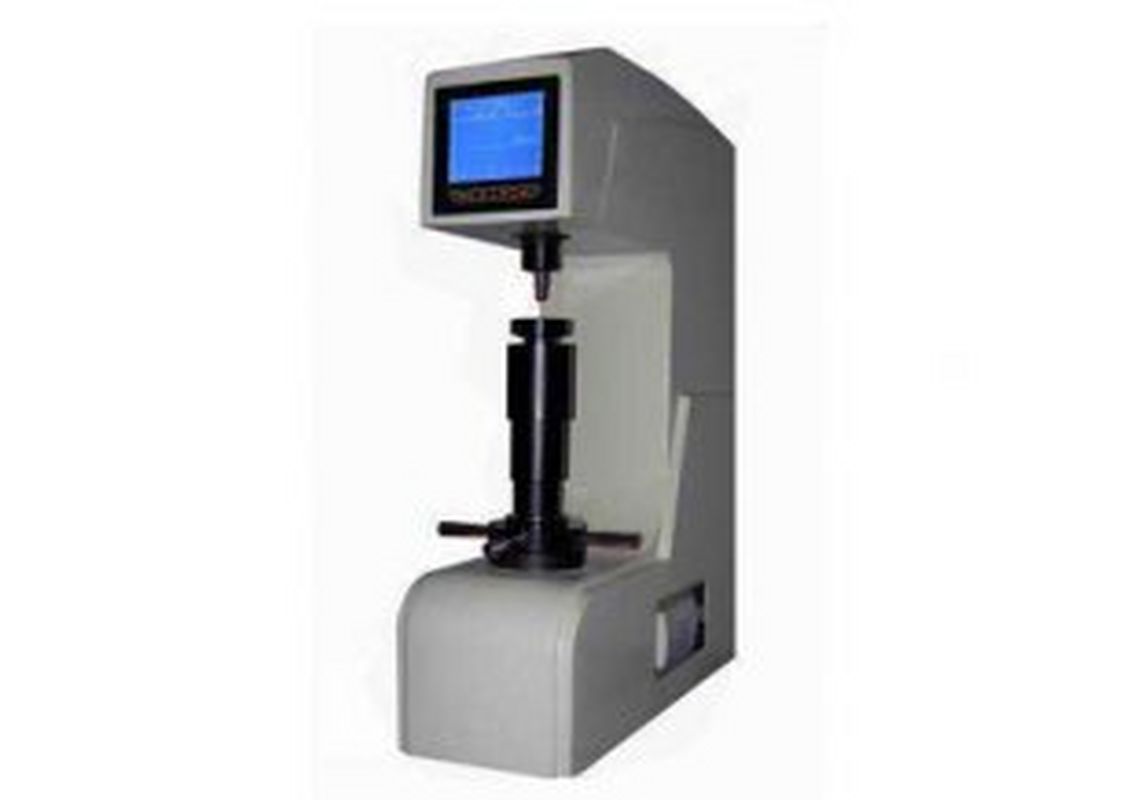

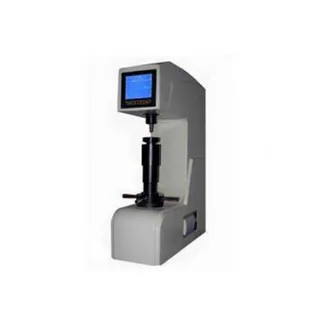

Máy thử độ cứng Rockwell HUATEC HR45P

HR45P can be used directly to measure Rockwell Superficial hardness for metal and plastic material.

·       Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.

·       Automatic test force switch according the selected scale without manual operation.

·       Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.

·       Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.

·       The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc., especially small and thin parts.

·       Test value can be transformed to the value of HB, HV, HK and σb value.

·       The tester meets all the following standards such as ISO 6508-2, ASTM E18, BS EN ISO6508-2, GB/T230.2.

·       Preload:29.4N(3kgf)

·       Total test force:147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf)

·       Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

·       Load cycle: 3～8s

·       Load dwell duration: 2～50s, can be set

·       Resolution :0.1HR

·       Display:High definition backlight LCD

·       Operation:Menu selectable, Membrane keypad

·       Upper/lower limits setting & alarming

·       Data statistics: Avg., Max., Min., S, R available

·       Curved surface correcting automatically

·       Memory: Max 500 items of test results stored automatically

·       Data output: USB port to external PC

·       With integrated micro-printer and printing measuring results automatically

·       Testing space:200mm in vertical, 165mm in horizontal

·       Dimensions: 550mm×200mm×720mm

·       Power supply: AC, 220V/110V, 50～60Hz, 4A

·       Net weight: 90kg


Hãng sản xuất: HUATEC

Xuất xứ: Trung quốc
