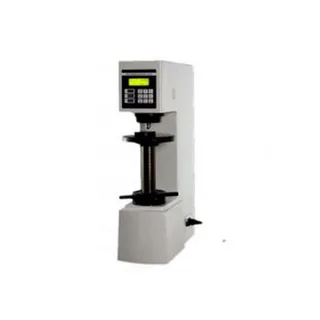

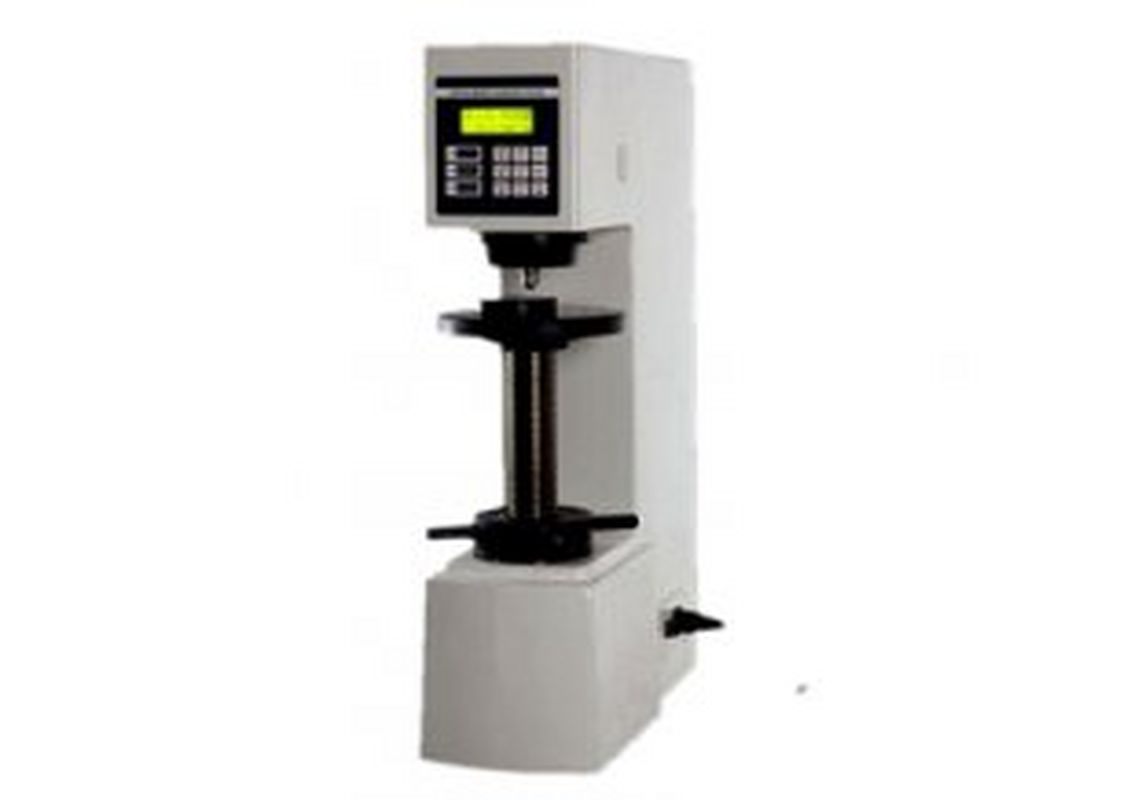

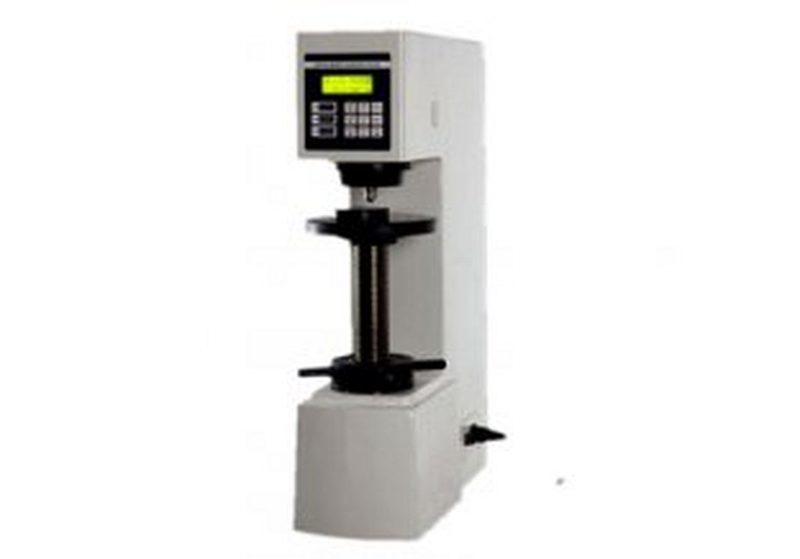

Máy thử độ cứng BRINELL HUATEC MHB-3000

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Technical Features and Standard Accessories: Testing Range:(8～650)HBW Test Force:612.9N(62.5kg), 980N(100kg), 1226N(125kg), 1839N(187.5kg), 2452(250kg), 4900N(500kg), 7355N(750kg), 9800N(1000kg), 14700N(1500kg), 29400N(3000kg) Max Height of the

Technical Features and Standard Accessories:
Testing Range:(8～650)HBW
Test Force:612.9N(62.5kg), 980N(100kg), 1226N(125kg), 1839N(187.5kg), 2452(250kg), 4900N(500kg), 7355N(750kg), 9800N(1000kg), 14700N(1500kg), 29400N(3000kg)
Max Height of the Specimen:225mm
Max Distance from the lndenter Center to the Instrument Panel:135mm
Amplification of the Digital Micro Eyepiece:15×(30×)
Min.Graduation Value of the Drum Wheel of the Digital Micro Eyepece:0.0025mm
Powerm Voltage:AC220V 50/60Hz
Main Accessories:
Testing Table :
Large, Small and V-Shaped each 1 PC
Hard Alloyed Steel Ball Indenters:Φ2.5mm, Φ5mm, Φ10mm, each 1PC
One 15× Digital Micro Eyepec
Two Standard Hardness Blocks (HBW 3000/10 150-250)(HBW 750/5 75-125)
Weight 160kg (Gross Weight) 130kg(Net Weight)
Package Dimensions: 893×720×470(L×W×H)

Hãng sản xuất: HUATEC

Xuất xứ: Trung quốc
