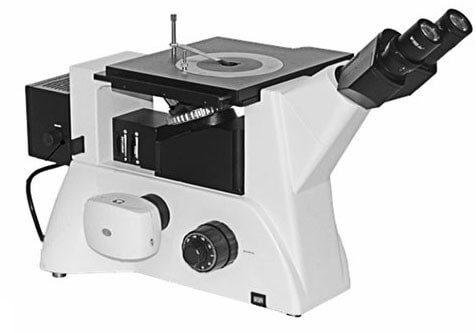

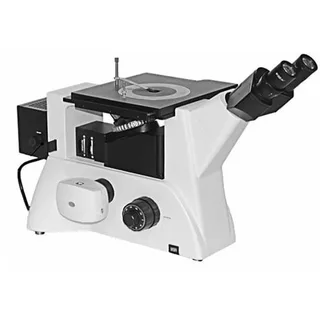

MÁY SOI CẤU TRÚC KIM LOẠI HIMM-70

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

ModelHIMM-70 (Bright-field)HIMM-70BD (Bright &Dark-field)Magnification100X 200X 500X 1000X50X 100X 200X 500XPlan Achromatic Objective10X 20X 50X 100X Dry5X 10X 20X 50XW F EyepieceWF 10x/22mmEyepiece10×(focusing) 0.1/22mmmicrometer 0.01

Model		HIMM-70 (Bright-field)		HIMM-70BD (Bright &Dark-field)
Magnification	100X 200X 500X 1000X		50X 100X 200X 500X
Plan Achromatic Objective	10X 20X 50X 100X Dry		5X 10X 20X 50X
W F Eyepiece	WF 10x/22mm
Eyepiece		10×(focusing) 0.1/22mmmicrometer 0.01/1mm
configuration	Inverted, optical trinocular tube, gemel type, obliquity 45°, pupil 53-75mm dioptre ±5% adjustable
Revolving objective	5 hole ball bearing circumvolve
Double layer stage	Stage size:242x200mm
	moving range 30x30 mmX-Y resolution 0.1mm
Rotary stage	Loading plateΦ130mm
Focus system	coaxial jiggle Up/down movement: 30mm
	Fine adjustment: 0.002mm Up and down locking & torsion adjustment
Bright-field/ Bright &Dark-field illumination	Kohler illumination; Variable aperture & field diaphragm ;
	Adjustable brightness ;
	Halogen Lamp: 30W/12V ;		Halogen Lamp: 50W/12V
	Filters: Yellow/Green/Blue/N/T
Polarizing	Polarizing and checking plate
Power supply		AC90-240V/50-60Hz45W
Dimensions & Weight		Machine N.W.:12 KG
		Dimensions 500(L)x360(W)x630(H)mm
