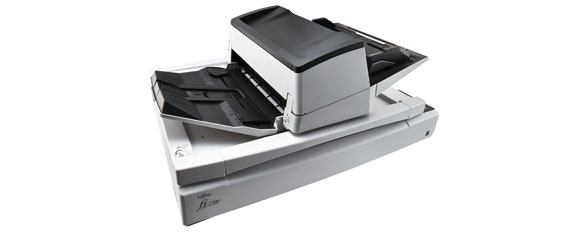

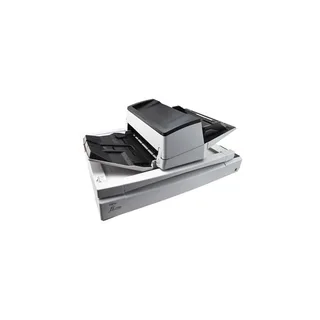

Máy scan Fujitsu fi-7700

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Descriptionfi-7700Functional SpecificationsImage Sensor TypeColor CCD (Charge-coupled device) x 3 (front x 1, back x 1, Flatbedx 1)Light SourceWhite LED Array x 6 (front x 2, back x 2, Flatbed x 2)Multifeed DetectionUltrasonic multi-feed detection

Description			fi-7700
Functional Specifications
Image Sensor Type			Color CCD (Charge-coupled device) x 3 (front x 1, back x 1, Flatbedx 1)
Light Source			White LED Array x 6 (front x 2, back x 2, Flatbed x 2)
Multifeed Detection			Ultrasonic multi-feed detection sensor, Paper detection sensor
Optical Resolution			600 dpi
Output resolution⁽¹⁾		Color (24-bit)	50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)⁽²⁾
		Grayscale (8-bit)
		Monochrome
Output format			Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Internal Video Processing			4,096 levels (12-bit)
Image Processing Functions			Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-Screen,Emphasis, Halftone, Dropout color (None / Red / Green / Blue / White / Saturation / Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Dither, Static threshold, Divide Long Page
Scanning Speed⁽³⁾ (A4 Landscape)	ADF	Color⁽⁴⁾ Grayscale⁽⁴⁾ Monochrome⁽⁵⁾	Simplex: 100 ppm, Duplex: 200 ipm (200 dpi / 300 dpi)
Scanning Speed⁽³⁾ (A4 Landscape)	Flatbed	Color⁽⁴⁾ Grayscale⁽⁴⁾ Monochrome⁽⁵⁾	0.6 Seconds (200 dpi / 300 dpi)
Scanning Speed⁽³⁾ (A4 Portrait)	ADF	Color⁽⁴⁾ Grayscale⁽⁴⁾ Monochrome⁽⁵⁾	Simplex: 80 ppm, Duplex: 160 ipm (200 dpi / 300 dpi)
Scanning Speed⁽³⁾ (A4 Portrait)	Flatbed	Color⁽⁴⁾ Grayscale⁽⁴⁾ Monochrome⁽⁵⁾	0.9 Seconds (200 dpi / 300 dpi)
Paper chute capacity (A4 Landscape)⁽⁶⁾			300 Sheets (A4: 80 g/m² or 20 lb.)
Background Colors		ADF	White / Black (switching with command available)
Background Colors		Flatbed	White (switching to optional black available)
Document Size		Minimum	50.8 mm x 69 mm (2 in. x 2.72 in.)
		Maximum	304.8 mm x 431.8 mm (12 in. x 17 in.)
		Long page scanning⁽⁷⁾ (Maximum)	304.8 mm x 5,588 mm (12 in. x 220 in. )
		Flatbed (Maximum)	304.8 mm x 457.2 mm (12 in. x 18 in. )
Paper Weight (Thickness)⁽⁸⁾		Paper	20 to 413 g/m² (5.3 to 110 lb.), A8 size: 128 to 209 g/m² (34 to 56 lb)
Paper Weight (Thickness)⁽⁸⁾		Plastic Card	Up to 1.4 mm⁽⁹⁾
Interface			USB 3.1 Gen1 / USB 3.0 / USB 2.0 / USB 1.1
Minimum PC Specification			CPU: Intel® Core i5 2400S @ 2.5Ghz Memory: 4.0GB OS:Windows® 7 SP1 (32-bit) Software: PaperStream Capture
Physical Specifications
Power Requirements			100 to 240 VAC ± 10 %
Power Consumption			Operating: 64 W or less, Sleep mode: 1.7 W or less,Auto Standby(OFF) mode: Less than 0.35 W
Dimensions (WxDxH)⁽¹⁰⁾			706 mm x 500 mm x 345 mm (27.8 in. x 19.7 in. x 13.6 in.)
Weight			35 kg (77.2 lb.) or less
Environmental Compatibility			ENERGY STAR® / RoHS
Operating Environment		Temperature	5 °C to 35 °C (41 °F to 95 °F )
Operating Environment		Relative Humidity	20 % - 80 % (non-condensing)
Included Items			ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
Included Software / Drivers			PaperStream IP (TWAIN/ISIS) ,2D Barcode for PaperStream⁽¹¹⁾, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series⁽¹¹⁾, Scan to Microsoft SharePoint⁽¹¹⁾, ABBYY FineReader for ScanSnap⁽¹¹⁾, Scanner Central Admin
Options			Black Document Pad (fi-575BK), PaperStream Capture Pro
Supported Operating Systems			Windows® 10 (32-bit/64-bit),Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2016 (64-bit),Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit)
