Thông số cơ bản:
| |

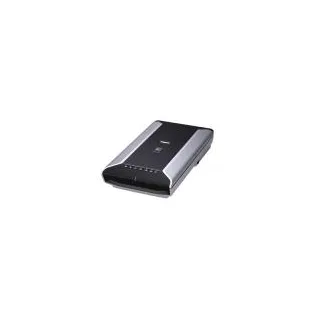

Máy quét Scanner màu khổ A4
Độ phân giải: 4800x9600dpi Optical, 19200dpi Enhanced.
Có 48bit color.
Công nghệ: CCD .
Có 7 phím nóng Scan-Copy-File x 4 -Email
Scan Film 35mm (Negatives-Positives)
- 6 frame strips or 4frames slides.
Giao tiếp USB 2.0HS
Hệ điều hành: Win 98/ME/2000/XP & Mac OS 9.0 or later. |
Giới thiệu chi tiết:
Scan
• Scan speed: 11 sec (A4 size at 300 dpi)
• 4800 x 9600 dpi CCD
• Scan 6 frames (max.) of 35mm film strip or
4 frames of 35mm slides
• Scanning Bit Depth at 48 bit (input) / (output)
• Auto Scan Mode
• Faithful reproduction of scanned images with Dual Colour Gamut Processing Technology
Convenient
• 7 easy buttons for one-touch operation
• Zero warm-up time for reflective scans
• Automatic dust & scratch reduction and fading / grain / backlight correction
• File multi-page documents easily with enhanced PDF function
Connectivity
USB 2.0 Hi-Speed
Environmental Friendly
• Low power consumption with white LED (for reflectives only)
• Conforms to EU RoHS
• Supports International Energy Star Program
Thông số kỹ thuật:
| |
| Scanner Type |
Flatbed |
| Scanner Element |
CCD 6-line colour |
| Light Source |
White LED / Cold Cathode Fluorescent Lamp |
| Optical Resolution*1 |
4800 x 9600dpi |
| Selectable Resolution |
25 - 19200dpi |
| Scanning Bit Depth |
|
| Colour |
48-bit input (16-bit for each colour)
48-bit or 24-bit output (16-bit / 8-bit for each colour) |
| Grayscale |
48-bit input (16-bit for each colour)
16-bit (film scanning only) or 8-bit output |
| Preview Speed*2 |
Approx. 3secs. (Colour A4: 300dpi) |
| Scan Speed*3 |
Approx. 11secs. (Colour A4: 300dpi) |
| Scanning Speed*4 (Reflective) |
|
| Colour |
4800dpi: |
14.6msec/line |
| 2400dpi: |
14.6msec/line |
| 1200dpi: |
9.7msec/line |
| 600dpi: |
3.7msec/line |
| 300dpi: |
1.8msec/line |
| Grayscale, B&W |
4800dpi: |
14.6msec/line |
| 2400dpi: |
14.6msec/line |
| 1200dpi: |
9.7msec/line |
| 600dpi: |
3.7msec/line |
| 300dpi: |
1.8msec/line |
| Scanning Speed*4 (Film) |
|
| Colour, Grayscale, B&W |
1.8 - 58.4msec/line |
| Max. Document Size |
A4, LTR: |
216 x 297mm (8.5 x 11.7in.) |
| Scanner Driver |
TWAIN / WIA (Windows XP / Windows Vista) |
| Film Type / No. of Frames |
|
| 35mm strip |
6 frames |
| 35mm slides |
4 frames |
| 120 format film |
- |
| Effective Scanning Area / Pixels |
|
| 35mm film*5 |
Area: |
24 x 36mm |
| Pixel*6: |
4535 x 6803 |
| Scanner Buttons (EZ Buttons) |
7 buttons (PDFx4, COPY, PHOTO / FILM, E-MAIL) |
| Interface |
USB 2.0 Hi-Speed (Mini-B Port) |
| Operating Range |
|
| Temperature |
10 to 35°C |
| Humidity |
10% to 90% RH (20% to 80% RH for film scanning), without condensation formation |
| Power Supply |
AC 100 - 240V, 50/60Hz |
| Power Consumption |
Approx. 19W max. (In operation)
Approx. 3.2W (Standby)
Approx. 0.4W |
| Environment (Plan) |
|
| Regulation |
RoHS (EU), WEEE (EU) |
| Eco-Label |
Energy Star |
| Dimensions (W x D x H) |
272 x 491 x 97mm |
| Weight |
Approx. 4.3kg |
| Specifications are subject to change without notice. |
| |
|
| *1 |
Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
|
| *2 |
Preprocessing time is not included. |
| *3 |
Colour document scanspeed is measured with ISO / IEC
24712 Newsletter. Scan speed indicates the time measured between
pressing the scan button of the scanner driver and the on-screen status
display turns off. Scan speed may vary depending on system
configuration, interface, software, scan mode settings and document
size etc.
|
| *4 |
The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included. |
| *5 |
Based on 1 frame of 35mm strip film. |
| *6 |
Based on the maximum scanning resolution. |
|
