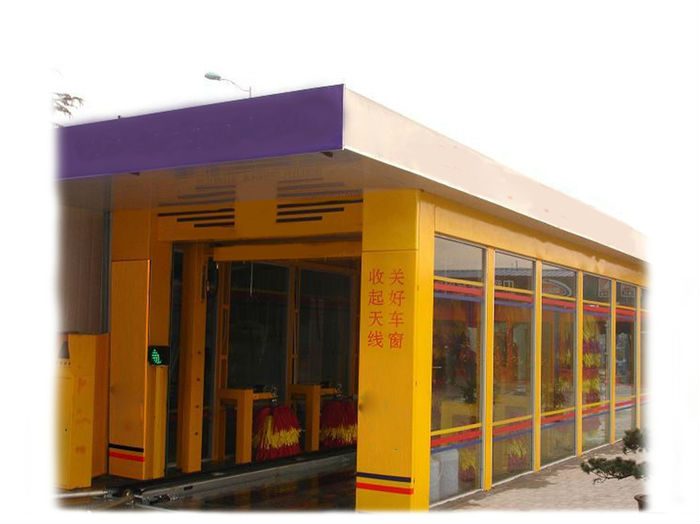

Máy rửa xe ô tô tự động AT-WT04

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Ⅰ:Technical parameters: Machine size:10750MM*3800MM*2950MM(L*W*H)Washable car size:5350MM*2250MM*2250MM(L*W*H)Assembling range:13500MM*4000MM(L*W)Air supply:Pressure 0.6-0.8MpaTotal electrical capacity:12KWTotal power:16.475KWMaximum operating:11

Ⅰ:Technical parameters:

Machine size:	10750MM3800MM2950MM(LWH)
Washable car size:	5350MM2250MM2250MM(LWH)
Assembling range:	13500MM4000MM(LW)
Air supply:	Pressure 0.6-0.8Mpa
Total electrical capacity:	12KW
Total power:	16.475KW
Maximum operating:	11.4KW
Various components Power:	Top brush 0.3KW*1
	Side brush 0.3KW*4
	Small brush 0.2KW*2
	Conveyor traveling 1.1KW*1
	Water Pump 0.75KW*1
	Dryer 5.5KW*2
	High pressure pump 4KW*1
	Swing motor 0.025KW*3
Water consumption:	125L
Washable car:	car,jeep,coach below 9 seats
Washing time:	50sets/hour

Ⅱ: Product introduction:

AT-WT04 Tunnel car washing machine featured as fast speed of washing and strong cleaning ability, is equipped with second-generation cloth brush and foam brush, the perfect-angled side brush technology improves the cleaning ability extremely, the profiling air-dry technology ensures the efficient drying, the unique design is qualified to dodge the bumpers to improve the safety, the hot-dip galvanized frame ensures a longer service time.

Ⅲ:Feature:

Professional washes for cars, jeeps and all kinds of coaches below 9 seats.
Adopting advanced technology and full module design, this can be combined to more than ten different functions for different needs.
The main electrical components are imported from famous foreign factory, which can ensure safe and reliable
Unique fault self-testing system.
Adopting the advanced high pressure system, Pre-swing high pressure water wash does not hurt the car.
Hot-dip Galvanizing (Zinc layer> 70 um) frame.
Maintenance-free of polymer materials roller and TN lifting mechanism.
Japanese EVA brushes to prevent injury car.
