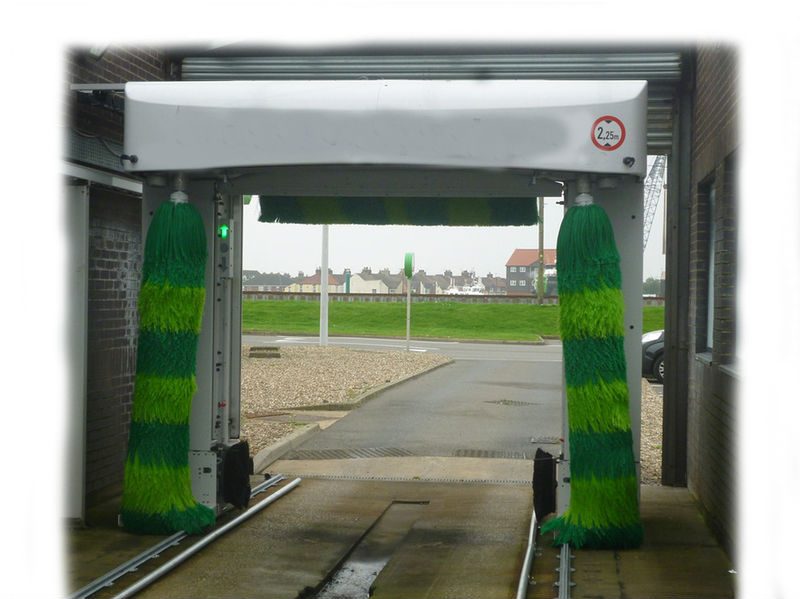

Máy rửa xe ô tô tự động AT-WL05
- Bảo hành
- 12 tháng
Khu vực này chưa có chi nhánh còn hàng — chọn khu vực khác hoặc đặt hàng online.
Thông số kỹ thuật
| Bảo hành | 12 tháng |
|---|
Đặc điểm nổi bật
Nội dung chính
Ⅰ:Technical parameters:
| Machine Size | 2460MM*3600MM*2850MM(L*W*H) |
| Rail Size | 8150MM*3200MM(L* W) |
| Swing arm Size | 2850MM (H) |
| Vehicle Size | 5350MM*2150MM*2200MM(L*W*H) |
| Assembling Range | 9800MM*3650MM*2850MM(L*W*H) |
| Air Supply | Pressure 0.6-0.8 Mpa |
| Total Electrical Capacity | 12 KW |
| Total Power | 16.475KW |
| Maximum Operating Power | 11.4KW |
| Various Components Power | Top brush 0.3KW*1 |
| Side brush 0.3KW*2 | |
| Small brush 0.2KW*2 | |
| Conveyor traveling 0.2KW*2 | |
| Water Pump 0.75KW*1 | |
| Dryer 5.5KW*2High pressure pump 3KW*1Swing motor 0.025KW*1 | |
| Water Consumption | 125L/Car |
| Washable Car | car, jeep, coach below 9 seats |
| Washing Time | 1 roll over wash: 3mins, 2 roll over wash: 5 mins |
| Washing Ways | 1 roll over economy wash 2 roll over standard wash |
Ⅱ: Product introduction:
AT-WL05 Automatic car washing machine is equipped with new-generation car model detection technology which is featured as combination of various ways of car washing and fast speed of cleaning, the profiling air-dry technology ensures the efficient drying , the combination of various ways of washing improves the washing speed, the hot-dip galvanized frame ensure a longer service time.
Ⅲ:Feature:
-
Professional washes for cars, jeeps and all kinds of coaches below 9 seats.
-
Adopting advanced technology and full module design, this can be combined to more than ten different functions for different needs.
-
The main electrical components are imported from famous foreign factory, which can ensure safe and reliable
-
Unique fault self-testing system, Waterproof motor, profiling powerful air-dry-system.
-
Adopting the advanced high pressure system, Pre-swing high pressure water wash does not hurt the car.
-
Hot-dip Galvanizing (Zinc layer> 70 um) frame.
-
Maintenance-free of polymer materials roller and TN lifting mechanism.
-
Japanese EVA brushes to prevent injury car.
Optional under chassis wash systems and water recycling system.
