Máy rửa xe ô tô tự động AT-WD01
- Bảo hành
- 12 tháng
Khu vực này chưa có chi nhánh còn hàng — chọn khu vực khác hoặc đặt hàng online.
Thông số kỹ thuật
| Bảo hành | 12 tháng |
|---|
Đặc điểm nổi bật
Nội dung chính
Ⅰ:Technical parameters:
| Outsidesizes(L*W*H)mm: | 2150*5780*5800 |
| Maxcarsizes(L*W)mm: | 12000*4200 |
| LengthofTrack: | 20000mm |
| Washingtime: | 3-6minperbus |
| Averagewaterconsumption: | 150Lperbus |
| Power: | 380V,50HZ,3phases,4wires |
| Powerconsumption: | 12.5KW |
| Averagewaterconsumption: | 120Lpercar |
| Netweight: | 3500Kg |

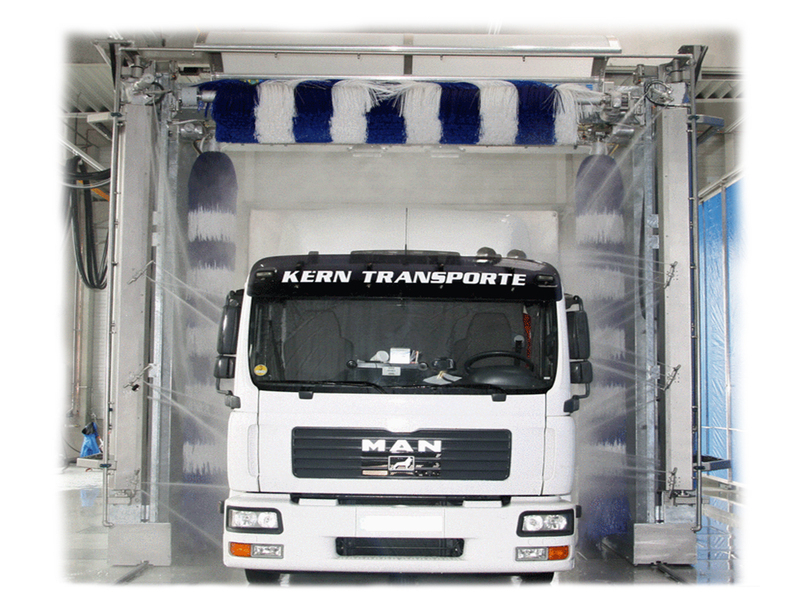

Ⅱ: Product introduction:
AT-WD01 series bus wash equipment is fully automatic system. The equipment are roll over gantry type system, where the vehicle is driven in by the customer. The equipment use experience brush washing technology. The complete equipment is built as modular structure and transport in partly-assembled form. The complete structure is galvanized and painted, to avoid corrosion in the harsh bus wash conditions.
The gantry computer washing machine can be used for bus, city bus and double desk bus etc.
The body of machine could use for long time stainless steel for the parts which may contact with water, the total using life more than 20 years, There are four washing types for choose, controlled by computer, Maincomponents imported from world famous manufactures.
Introduce advanced technology from Italy, Brushes can be used for 80,000-100,000 car-times
Ⅲ:Feature:
Cost-effective use for bus & coach, city bus, double deck, etc.
Multiple wash programs, contains all the necessary functions for a successful washing operation.
The structure is manufactured with heavy tubular sections, with modular design foam brush, washes gently without scratch.
Frequency control at the travel and lift drives for a careful, smooth running and variable speeds.
Precise control, contour-tracking washing.
Optional 7 brushes, 9 brushes, water recycling system.
