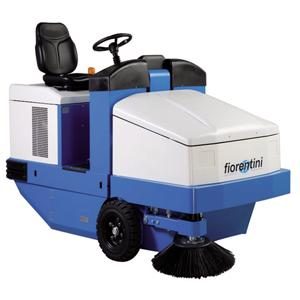

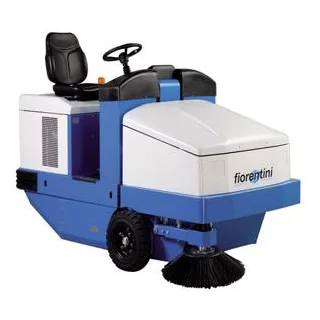

Máy quét rác công nghiệp Fiorentini S34 D

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

TECHNICAL DATESS 34 DWorking widthmm -with 2 side brushesmm1450-with 1 side brushmm1150-only central brushmm850Cleaning capacity up tom2/h9300Operating rangeh Waste tank dischange (m/idr) Waste tank capacityl205Max. discharging heightmm1340TECHNICAL

TECHNICAL DATES		S 34 D
Working width	mm
-with 2 side brushes	mm	1450
-with 1 side brush	mm	1150
-only central brush	mm	850
Cleaning capacity up to	m2/h	9300
Operating range	h
Waste tank dischange (m/idr)
Waste tank capacity	l	205
Max. discharging height	mm	1340
TECHNICAL DATES		S 34 D
Sweeping type (front/rear)		front
Mechanical drive (front/rear)
Traction (motoroue/diff./hydrost.)		@NOTE7@
Forward speed	km/h	0/8.1
Filter type		/
Max. slope	%	15
Filtering surface		5.5 / 7
Central cylindrical brush speed rotation	rmp	480
Side brush speed rotation	rmp	97
Noise level	DB	81.5
Turning radius	mm	1555
Vibrations (hand/arm)		Aw=1.85
Central brush motor
Side brush motor
ELETTRIC DATES		S 34 D
Power	V
Vacuum motor	W	250
Feeding
MOTORIZATION		S 34 D
Feeding (diesel/fuel/gas)
Mark/model of the engine		Lombardini LDW702
N° cylinders		2
Power/rounds		17.7cv x 3600rpm
Cooling
WEIGHT AND DIMENSIONS		S 34 D
Length	mm
-with 2 side brushes	mm	2150
-only central brush	mm	1965
Width	mm	1185
Height	mm	1470
Ø roll central brush	mm	Ø 300
Roll central brush length	mm	850
Ø side brush	mm	Ø 550
Weight of the batteries (approx.)	kg	12.35
Weight of the machine	kg	760
