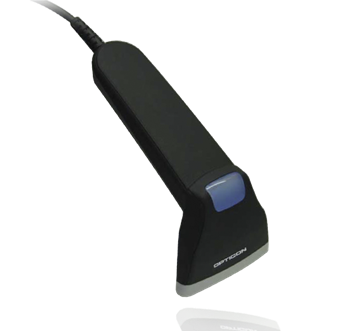

Máy Quét Mã Vạch OPR4001

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Operating indicators Visual 1 LED (red/green/orange) Non-visual Buzzer Operating keys Entry options 1 scan key Communication RS232 DB9 F connector with external power supply Keyboard Wedge MiniDIN6 connector Power Voltage requirement 5V ± 10%

Operating indicators
Visual	1 LED (red/green/orange)
Non-visual	Buzzer
Operating keys
Entry options	1 scan key
Communication
RS232	DB9 F connector with external power supply
Keyboard Wedge	MiniDIN6 connector
Power
Voltage requirement	5V ± 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.6V) (RS232)
Barcode scanner Optics
Light source	626 nm red LED
Scan method	CCD linear Sensor 2500 pixels
Scan rate	200 scans/sec
Trigger mode	Manual, auto-trigger
Supported Symbologies
Barcode (1D)	JAN/UPC/EAN incl. add on, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1Databar (RSS) (exl.stacked), IATA, ISBN-ISSN, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, Telepen, Tri-Optic, S-Code, UK/Plessey
Postal code	Chinese Post
Durability
Temperature in operation	0 to 50 °C / 32 to 122 °F
Temperature in storage	-20 to 60 °C / -14 to 140 °F
Humidity in operation	5 - 95% (non-condensing)
Humidity in storage	5 - 95% (non-condensing)
Ambient light immunity	Direct sun 10,000 lx max
Drop test	1.5 m / 5 ft drop onto concrete surface
Vibration test	10 - 100 Hz with 2G for 1 hour
Protection rate	IP 42
Physical
Dimensions (w x h x d)	52 x 165 x 77mm / 2.05 x 6.50 x 3.03 in
Weight body	Ca. 80 g / 2.8 oz (excl. cable)
Case	ABS, Black or White
Regulatory & Safety
Product compliance	CE, FCC, VCCI, RoHS
