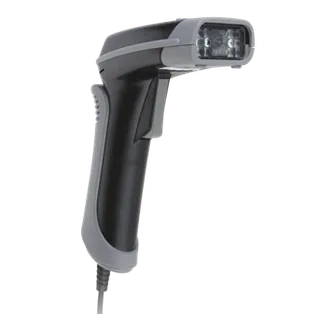

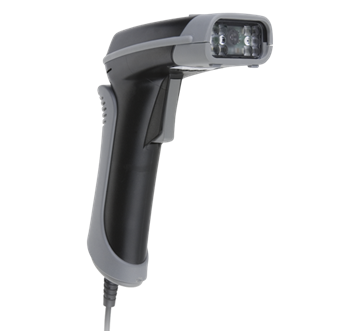

Máy Quét Mã Vạch OPI2002

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Operating indicators Visual 1 LED (red/green/orange) Non-visual Buzzer Operating keys Entry options 1 scan key Communication RS232 DB9 PTF connector with external power supply Keyboard Wedge DIN5 F/M connector, MiniDIN6 F/M connector with

Operating indicators
Visual	1 LED (red/green/orange)
Non-visual	Buzzer
Operating keys
Entry options	1 scan key
Communication
RS232	DB9 PTF connector with external power supply
Keyboard Wedge	DIN5 F/M connector, MiniDIN6 F/M connector with external power supply
USB	Ver. 1.1, HID/VCP, USB-A connector
Power
Voltage requirement	6V ± 5%
Current consumption	340mA (typical use)
2D Imager Optics
2D Light source	10 red LEDs 630 nm
2D Scan method	CMOS area sensor, SXGA (1.3 million pixels), gray scale
2D Scan rate	Up to 30 fps
2D Trigger mode	Manual, multiple read, auto-trigger, stand detection
2D Image format	Windows Bitmap, JPEG, TIFF
2D Gradulation	256, 16, 2
2D Image output mode	4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical)
2D Reading pitch angle	-60 to 0°, 0 to +60°
2D Reading skew angle	-65 to 0°, 0 to +65°
2D Reading tilt angle	360°
2D Focal plane	110 mm / 4.33 in from window
2D Curvature	R>15 mm (EAN8), R>20 mm (EAN13)
2D Min. Resolution at PCS 0.9	0.127 mm / 5 mil
2D Min. PCS value	0.45
2D Field of view	Horizontal 47º, Vertical 37.5º
2D Depth of field	40 - 195 mm / 1.57 - 7.68 in (0.339 mm / 13 mil), 85 - 125 mm / 3.35 - 4.92 in (0.127 mm / 5 mil), 35 - 230 mm / 1.38 - 9.06 in (0.5 mm / 20 mil), 55 - 160 mm / 2.17 - 6.30 in (0.25 mm / 10 mil), 85 - 125 mm / 3.35 - 4.92 in (0.127 mm / 5 mil), at PDF417 and Code 39
Supported Symbologies
Barcode (1D)	JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code	Chinese Post, Korean Postal Authority code
2D code	Aztec Code, Aztec Runes, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Durability
Temperature in operation	-20 to 50 °C / -4 to 122 °F
Temperature in storage	-25 to 70 °C / -13 to 158 °F
Humidity in operation	5 - 95% (non-condensing)
Humidity in storage	5 - 95% (non-condensing)
Ambient light immunity	Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
Antistatic electricity	15 kV (non-destructive)
Drop test	1.8 m / 6 ft drop onto concrete surface
Vibration test	10 - 100 Hz with 2G for 1 hour
Protection rate	IP 42
Physical
Dimensions (w x h x d)	55 x 149 x 129 mm / 2.17 x 5.87 x 5.04 in
Weight body	Ca. 135 g / 4.8 oz (excl. cable)
Case	ABS, Black
Regulatory & Safety
Product compliance	CE, FCC, VCCI, RoHS
