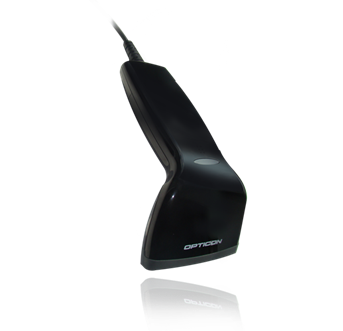

Máy Quét Mã Vạch C37

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Operating indicators Visual 1 LED (red/green/orange) Non-visual Buzzer Operating keys Entry options 1 scan key Communication RS232 DB9 F connector with external power supply Keyboard Wedge MiniDIN6 F/M connector USB Ver. 1.1, HID, USB-A

Operating indicators
Visual	1 LED (red/green/orange)
Non-visual	Buzzer
Operating keys
Entry options	1 scan key
Communication
RS232	DB9 F connector with external power supply
Keyboard Wedge	MiniDIN6 F/M connector
USB	Ver. 1.1, HID, USB-A connector
Power
Voltage requirement	5V ± 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.6V) (RS232)
Barcode scanner Optics
Light source	630 nm red LED
Scan method	CCD linear Sensor 2500 pixels
Scan rate	200 scans/sec
Trigger mode	Manual, auto-trigger
Reading pitch angle	-35 to 0°, 0 to +35°
Reading skew angle	-70 to -20°, 20 to +70°
Reading tilt angle	-20 to 0°, 0 to +20°
Curvature	R>15 mm (EAN8), R>20 mm (EAN13)
Min. resolution at PCS 0.9	0.125 mm / 5 mil
Depth of field	0 - 15 mm / 0 - 0.59 in, at PCS 0.9, Code 39
Supported Symbologies
Barcode (1D)	JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey
Postal code	Chinese Post, Korean Postal Authority code
Durability
Temperature in operation	0 to 50 °C / 32 to 122 °F
Temperature in storage	-20 to 60 °C / -14 to 140 °F
Humidity in operation	5 - 95% (non-condensing)
Humidity in storage	5 - 95% (non-condensing)
Ambient light immunity	Fluorescent 10,000 lx max, Incandescent 10,000 lx max
Drop test	1.5 m / 5 ft drop onto concrete surface
Vibration test	10 - 100 Hz with 2G for 1 hour
Protection rate	IP 42
Physical
Dimensions (w x h x d)	53 x 75 x 150 mm / 2.09 x 2.95 x 5.91 in
Weight body	Ca. 90 g / 3.2 oz (excl. cable)
Case	ABS, Black or White
Regulatory & Safety
Product compliance	CE, FCC, VCCI, RoHS
