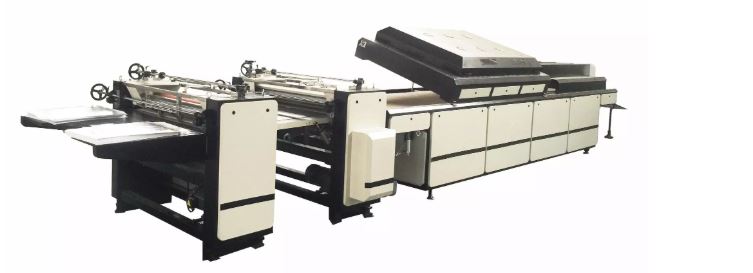

Máy phủ màng chống UV giấy dày-mỏng JT-SE1200S

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Purpose:It is a paper surface varnishing (UV) and polishing machine which is suitable for the varnishing and polishing process of various paper (80-600g/m²); various paper prints after processing greatly improve surface gloss; the print surface has

Purpose:

It is a paper surface varnishing (UV) and polishing machine which is suitable for the varnishing and polishing process of various paper (80-600g/m²); various paper prints after processing greatly improve surface gloss; the print surface has the damp-proof and water-proof effects. The machine adopts the reversing mechanism to make the oil layer thinner and more even.

The machine also adopts a computer air knife device, a strong absorption mechanism and a right-and-right scraper transmission mechanism. It has the characteristics of beautiful appearance, stable and reliable performance, simple and convenient operation and high automation degree.

Specifications:

Model	SE-1200S(manual feeding)	SE-1200A(auto feeding)
Length of Roller	1250mm	1250mm
Max. paper size	1150	1150*900mm
Min. paper size	*	390*320mm
Paper Thickness	80-600g/m²	80-600g/m²
Working speed	80m/min	80m/min
Voltage	380v 50Hz	380V 50Hz
Motor Power	2.5kw	3.5kw
Total power	65kw	70kw
Infrared Heating Power	21.6kw (18 pcs*1.2kw)	21.6kw (18 pcs*1.2kw)
Ultraviolet Heating Power	24kw (3 groups*8kw)	24kw (3 groups*8kw)
Machine Weight	3000kg	4500kg
Overall Dimension	980020001600mm	1180020001800mm
Package	Seaworthy packing	Seaworthy packing
Loading	40” container	40” container
