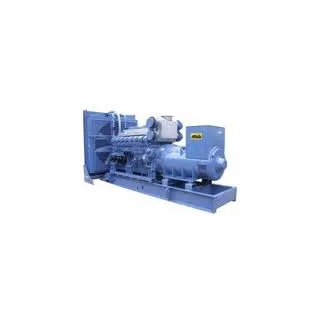

Máy phát điện Mitsubishi MGS0700B 5S-H6H
- Bảo hành
- 12 tháng
2.000.000.000đ
Giá chưa gồm VAT (10%) — VAT cộng khi đặt hàng
Trả góp chỉ từ /tháng
Xem gói trả góp ›
Tình trạng:
Còn hàng
Chỉ còn sản phẩm
Sản phẩm đang còn hàng — tạm thời chưa nhận đặt hàng.
Xem chi nhánh có hàng
Khu vực này chưa có chi nhánh còn hàng — chọn khu vực khác hoặc đặt hàng online.
Thông số kỹ thuật
| Bảo hành | 12 tháng |
|---|
Đặc điểm nổi bật
Voltage Variation ■ Standard Voltage 3Phase 4 Wires 380V ■ Voltages Available 3Phase 4 Wires 380, 400, 415, 440, 190, 200, 208 and 220V Note: Outputs for optional voltages may differ from standard output mentioned above. CONDITIONS &
Nội dung chính
Voltage Variation
■ Standard Voltage 3Phase 4 Wires
380V
■ Voltages Available 3Phase 4 Wires
380, 400, 415, 440, 190, 200, 208 and 220V
Note: Outputs for optional voltages may differ from standard output mentioned above.
CONDITIONS & DEFINITIONS
Stand-by: Code: S
Applicable for supplying emergency power at varying load in the event of the normal utility power interruption.
Fuel stop power in accordance with ISO15550, ISO3046/1, JISB8002-1, DIN6271 and BS5514.
Overload: not allowed
Prime: Code: P
Applicable for supplying emergency power at varying load in the event of normal utility power interruption. 10% overload is
allowed.
Fuel stop power in accordance with ISO15550, ISO3046/1, JISB8002-1, DIN6271 and BS5514.
Overload: 10% allowed
Conditions:
Engine ratings are based on SAE J1349 standard conditions and also apply at ISO3046/1, DIN6271 & BS5514 standard
conditions.
Fuel rates: based on ASTM D975, BS2869 and on fuel oil of 35°API (16°C or 60° F) gravity having a LHV of 42,780 kJ/kg
(18,390 Btu/lb.) when used at 29°C (85° F) and weighing 838.9 g/liter (7.001lbs./U.S. gal.).
Note: * For conditions of prime power (P.R.P.) and additional rating requirements, please consult your nearest Mitsubishi
MGS dealer.
DIMENSION (Reference Data)
Overall dimensions L : Length mm 4025
W : Width mm 1810
H : Height mm 1955
Total Weight (Dry) kg 5700
Total Weight (Wet) kg 6000
■ Standard Voltage 3Phase 4 Wires
380V
■ Voltages Available 3Phase 4 Wires
380, 400, 415, 440, 190, 200, 208 and 220V
Note: Outputs for optional voltages may differ from standard output mentioned above.
CONDITIONS & DEFINITIONS
Stand-by: Code: S
Applicable for supplying emergency power at varying load in the event of the normal utility power interruption.
Fuel stop power in accordance with ISO15550, ISO3046/1, JISB8002-1, DIN6271 and BS5514.
Overload: not allowed
Prime: Code: P
Applicable for supplying emergency power at varying load in the event of normal utility power interruption. 10% overload is
allowed.
Fuel stop power in accordance with ISO15550, ISO3046/1, JISB8002-1, DIN6271 and BS5514.
Overload: 10% allowed
Conditions:
Engine ratings are based on SAE J1349 standard conditions and also apply at ISO3046/1, DIN6271 & BS5514 standard
conditions.
Fuel rates: based on ASTM D975, BS2869 and on fuel oil of 35°API (16°C or 60° F) gravity having a LHV of 42,780 kJ/kg
(18,390 Btu/lb.) when used at 29°C (85° F) and weighing 838.9 g/liter (7.001lbs./U.S. gal.).
Note: * For conditions of prime power (P.R.P.) and additional rating requirements, please consult your nearest Mitsubishi
MGS dealer.
DIMENSION (Reference Data)
Overall dimensions L : Length mm 4025
W : Width mm 1810
H : Height mm 1955
Total Weight (Dry) kg 5700
Total Weight (Wet) kg 6000
