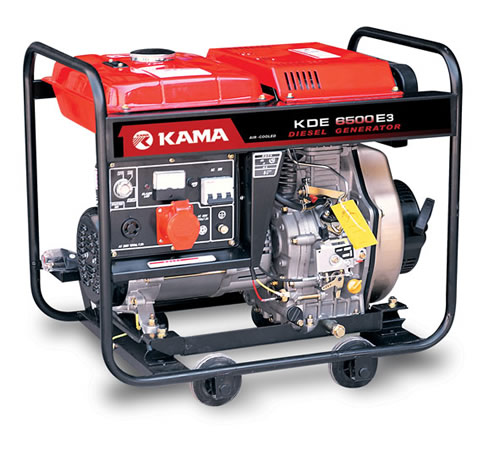

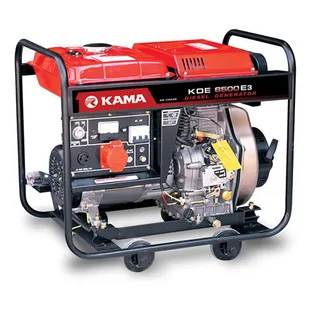

Máy phát điện Kama KDE6500E3

Rated frequency(Hz)

50 60

Rated voltage(V)

400/230 400/230

Rated current(A)

6.77.5

Rated output power(kW)

5.0 5.2

Rated rotation speed(rpm)

3000 3600

DC output

No

Power factor(cos)

0.8(Appliced to KVA)

Phase number

Three phase

Noise level[dB(A)@7m]

74~77

Overall dimension(L*W*H)[mm(in)]

720x492x650(28.35x19.37x25.59)

Dry weight[kg(ibs.)]

100(220)

Structure type

Open-frame type

Coupling mode

Transmission shaft rigid couping

Engine model

KM186FAE

Engine type

Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine

Displacement[ml(cu.in)]

418(25.51)

Compression ratio

19:1

Rated power[kW(Hp)/rpm]

5.9(8.02)/3000,6.5(8.84)/3600

Starting system

12V electric starter

Rotation direction(View from flywheel)

Clockwise

Fuel

0# (summer),-10# (winter) light diesel oil
