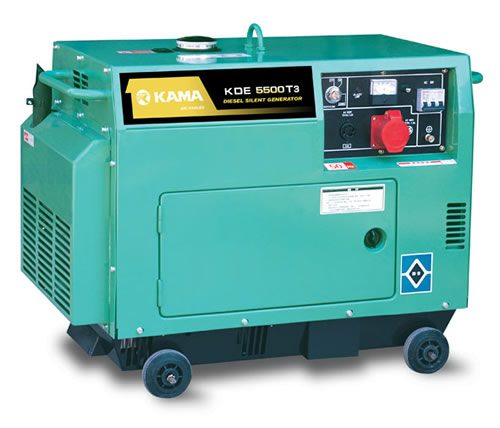

Máy phát điện Kama KDE5500T3

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Rated frequency(Hz) 50 60Rated voltage(V) 400/230 400/230Rated current(A) 6.1 7.2Rated output power(kW) 4.2 5.0Rated rotation speed(rpm) 3000 3600DC output NoPower factor(cos) 0.8(Applied to KVA)Phase number Three phaseNoise level[dB(A)@7m] 70

Rated frequency(Hz)		50 60
Rated voltage(V)		400/230 400/230
Rated current(A)		6.1 7.2
Rated output power(kW)		4.2 5.0
Rated rotation speed(rpm)		3000 3600
DC output		No
Power factor(cos)		0.8(Applied to KVA)
Phase number		Three phase
Noise level[dB(A)@7m]		70~74
Overall dimension(LWH)[mm(in)]		910x530x740(35.82x20.87x29.13)
Dry weight[kg(ibs.)]		170(376.2)
Structure type		Silent type
Coupling mode		Transmission shaft rigid coupling
Engine model		KM186FE
Engine type		Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement[ml(cu.in)]		406(24.78)
Compression ratio		19:1
Rated power[kW(Hp)/rpm]		5.7(7.75)/3000,6.3(8.57)/3600
Starting system		12V electric starter
Rotation direction(View from flywheel)		Clockwise
Fuel		0# (summer),-10# (winter) light diesel oil
