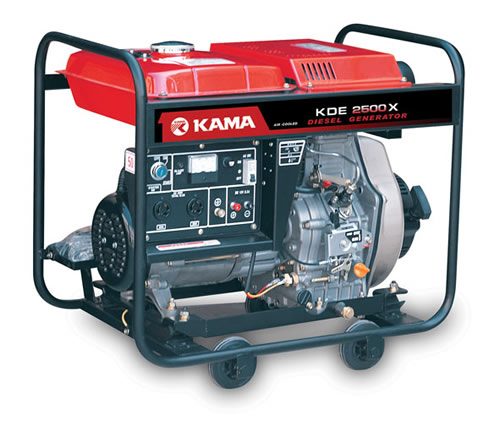

Máy phát điện Kama KDE2500X

Thông số kỹ thuật

Bảo hành	12 tháng

Đặc điểm nổi bật

Rated frequency(Hz) 50 60Rated voltage(V) 230 230/115Rated current(A) 7.4 8.7/17.4Rated output power(kW) 1.7 2.0Rated rotation speed(rpm) 3000 3600DC output 12V 8.3APower factor(cos) 1.0Phase number Single phaseNoise level[dB(A)@7m] 72~77Overall

Rated frequency(Hz)		50 60
Rated voltage(V)		230 230/115
Rated current(A)		7.4 8.7/17.4
Rated output power(kW)		1.7 2.0
Rated rotation speed(rpm)		3000 3600
DC output		12V 8.3A
Power factor(cos)		1.0
Phase number		Single phase
Noise level[dB(A)@7m]		72~77
Overall dimension(LWH)[mm(in)]		575×400×530 (22.64×15.75×20.87)
Dry weight[kg(ibs.)]		60(132)
Structure type		Open-frame type
Coupling mode		Transmission shaft rigid coupling
Engine model		KM170F
Engine type		Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacement[ml(cu.in)]		211(12.88)
Compression ratio		20:1
Rated power[kW(Hp)/rpm]		22.5(3.4)/3000,2.8(3.8)/3600
Starting system		Recoil
Rotation direction(View from flywheel)		Clockwise
Fuel		0# (summer),-10# (winter) light diesel oil
