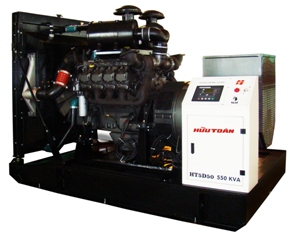

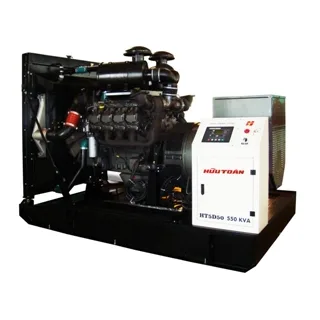

Máy phát điện dầu DEUTZ HT5D30

Model

HT5D30

GENERATOR

Type

Three phase synchronous generator, Brushless, Self excited with AVR

Construction

Single bearing, Direct coupled, Self lubricated, Self ventilated

Insulation and protection

Class H with tropicalization, IP21 (other protection on request)

Voltage regulation

0.25% + 1.5%, cos φ = 0.8 + 1.0

Frequency

Hz

50 / 60

Output

Standby

kVA

330 / 350

kW

264 / 280

Prime

kVA

300 / 320

kW

240 / 256

Rated voltage

V

220 / 380 ; 240 / 415

Phase - Wire - Cos φ

3 - 4 - 0.8

ENGINE

Model

BF6M101c-g1

Type

Diesel 4 stroke, water cooled

Cylinder arrangement

V6

Bore x Stroke

mm

132 x 145

Aspiration

Turbo, CAC

Total displacement

l

11.9

Rated speed

rpm

1500 / 1800

Rated output

Tối đa

hp

402.4/ 431.6

kW

300.2 / 322.0

Liên tục

hp

363.5 / 390.1

kW

271.2 / 291.0

Governor type

Electronic

Starting motor

DC - 24V

FUEL

Tank capacity (Open/SoundProof)

l

600 / 800

Consumption

25%

l/h

18.0 / 22.1

50%

34.7 / 39.3

75%

51.8 / 58.1

100%

70.3 / 78.6

Lub. Oil Capacity (sump)

l

34

Coolant Capacity

l

91.0

Dimensions (Open/SoundProof)

Length

mm

2500 / 3900

Width

1400 / 1500

Height

2200 / 2300

Dry weight (Open/SoundProof)

Kg

2100 / 3000

Specifications are subject to change without period notice
