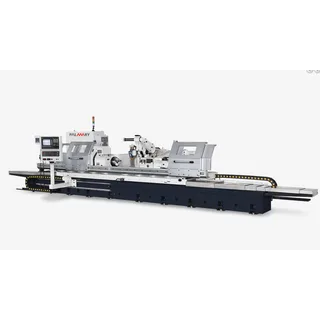

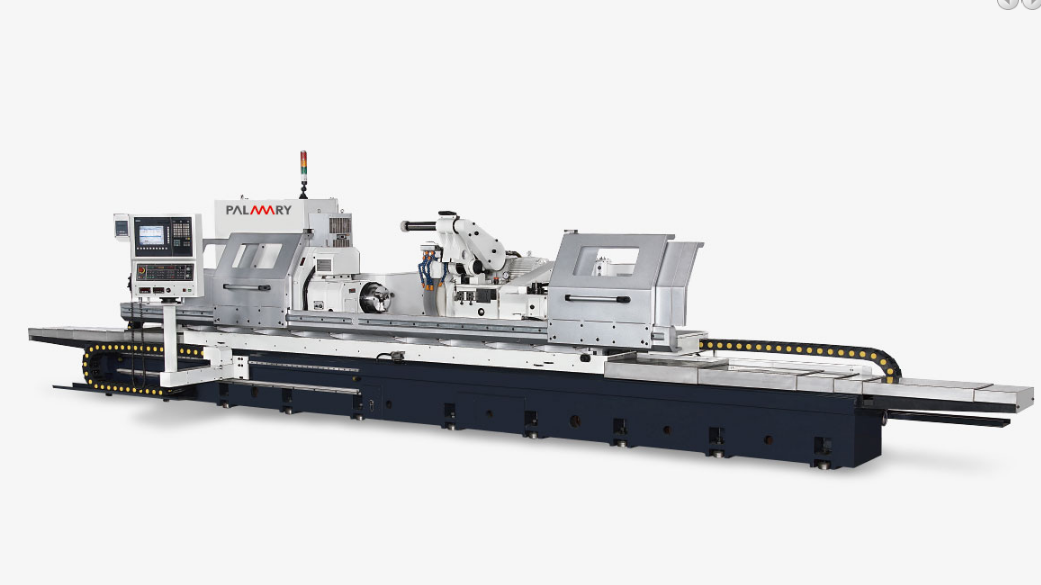

MÁY MÀI TRỤC CÁN THÉP CNC OCD-45300

Khả năng mài của máy

CNC Roll Grinder, CNC Roll Grinding, CNC Cylindrial Grinder

Swing over table

Ø450 mm

Distance between centers

1500 mm / 2200 mm / 3000 mm

Max. grinding diameter

Ø420 mm

Max. workpiece 1oad

800 kg by between centers / 2000 kg by heavy steady rest

Grinding wheel

O.D. x width x I.D.

Ø510 x 50~125 x Ø152.4 mm

Speed

33 M/s

Wheel head- X axis

Max. movable distance

350 mm

Feed rate

0.001~2000 mm/min

Rapid feed rate

4000 mm/min

Sliding table -Z axis

Max. movable distance

1970 mm

Feed rate

0.001~2000 mm/min

Rapid feed rate

4000 mm/min

Workhead

Center

MT. 5

Speed (variable speed)

0~250 r.p.m.

Tailstock

Center

MT. 5

Moveable mode of centers

Manual / Hydraulic type (opt.)

Max. distance of centers

60 mm

Motor

Wheel spindle

11 kW (15 HP)

Workhead

2.9 kW

Wheelhead - X axis

2.8 kW (servo motor)

Sliding table- Z axis

4.4 kW (servo motor)

Center height of machine

From ground

1000 mm

Machine weight

12000 kg / 14000 kg / 16000 kg
