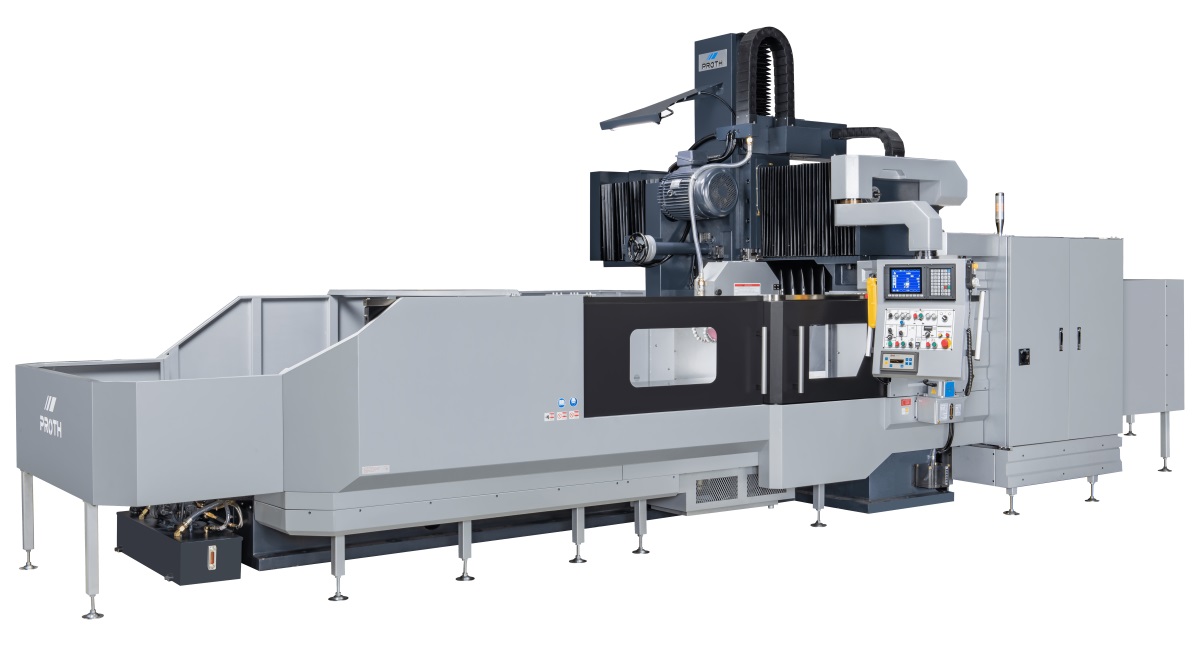

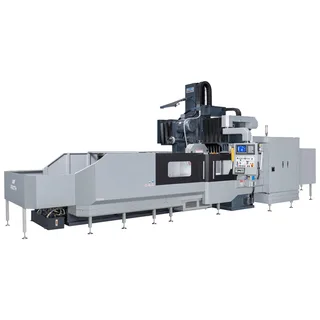

SPECIFICATION / MODELS

PSGP

1015AHR

1020AHR

1025AHR

1030AHR

1040AHR

1050AHR

1060AHR

General Capacity

Max. travel (cross x longitudinal)

1200x1650
mm

1200x2150
mm

1200x2650
mm

1200x3150
mm

1200x4150
mm

1200x5150
mm

1200x6150
mm

Wheel bottom to table(Vertical Head)

0-750mm

Spindle center height from table

approx. 1100mm

Max height from table top to bottom of standard wheel

845mm

Grinding surface of table

1000x1500
mm

1000x2000
mm

1000x2500
mm

1000x3000
mm

1000x4000
mm

1000x5000
mm

1000x6000
mm

Longitudinal Movement

Hydraulic table speed

2-25(1-25)m/min

Cross Movement

Clearance between the columns

1200mm

Intermittent cross feed-approx.(Electro-mechanical)

0.1-35mm/feed

Continuous cross feed-approx.(Electro-mechanical)

3000mm/min

Hand feed per revolution

5mm

10mm

Hand feed per division

0.02mm

0.05mm

Vertical Downfeed

Rapid traverse approx.(option)

250mm/min

Hand feed per division MPG

0.001mm

Grinding Wheel

Dimension(O.D x W x I.D)

510x100x203mm

Spindle speed(50/60Hz)

1150 r.p.m.

Motor

Horizontal head spindle motor

11(15,18.5)kW/15(20,25)HP

Vertical head spindle motor

7.5kW/10HP

Hydraulic motor

7.5kW/10HP

11kW/15HP

15kW/20HP

20.5kW/27.5HP

Weight

Net weight

10000kg

13500kg

17500kg

22000kg

36500kg

40000kg

44500kg

Gross weight

13000kg

17000kg

21500kg

26500kg

41000kg

45000kg

49500kg

MachineSize

Dimension (L x W x H) (m)

5.1x2.9x3.4

6.2x2.9x3.4

7.3x2.9x3.4

8.4x2.9x3.4

11.2x2.9x3.5

13.4x2.9x3.5

15.6x2.9x3.5
