SPECIFICATION / MODELS

PSGC

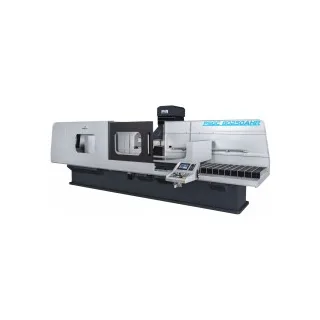

80250AHR

General Capacity

Max. travel (cross x longitudinal)

mm

860x2650

Spindle center height from table

mm

700

Max height from table top to bottom of standard wheel

mm

450

Grinding surface of table

mm

800x2500

Longitudinal Movement

Hydraulic table speed

m/min

1-25

Cross Movement

Intermittent cross feed-approx.

mm/feed

0.1-25

Continuous cross feed-approx.

mm/min

2000

MPGper revolution

mm

0.001 x1 / x5 / x10

MPGper division

mm

0.001

Vertical Downfeed

Rapid traverse approx.(option)

mm/min

500

MPGper revolution

mm

0.001 x1 / x5 / x10

MPGper division

mm

0.001

Grinding Wheel

Dimension(O.D x W x I.D)

mm

510x75x203.2

Spindle speed(50/60Hz)

r.p.m.

1150

Motor

Spindle motor

11kW/15HP

Hydraulic motor

7.5kW/10HP

Weight

Net weight

kg

16000

Gross weight

kg

17500

Machine Size

Dimension (L x W x H)

m

7.6x4.5x2.9

Longitudinal Slideways

Cross Slideways

Longitudinal Movement

Cross Movement

Vertical Downfeed

Auto Down Feed

Double Vee Way

Double Vee Way

Hydraulic

Automatic

Rapid Up/Down

Optional
