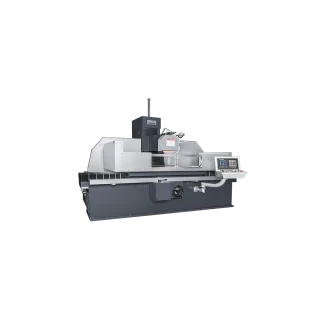

Máy mài phẳng PROTH PSGC-60250AHR

SPECIFICATION / MODELS

PSGC

60120AHR

60150AHR

60220AHR

60250AHR

General Capacity

Max. travel (cross x longitudinal)

660x1350mm

660x1650mm

660x2350mm

660x2650mm

Spindle center height from table

700mm

Max height from table top to bottom of standard wheel

522mm

Grinding surface of table

600x1200mm

600x1500mm

600x2200mm

600x2500mm

Longitudinal Movement

Hydraulic table speed

1-25m/min

Cross Movement

Intermittent cross feed-approx.(Electro-mechanical)

0.1-15mm/feed

Continuous cross feed-approx.(Electro-mechanical)

2000mm/min(50Hz),2400mm/min(60Hz)

Hand feed per revolution

5mm

Hand feed per division

0.02mm

Vertical Downfeed

Rapid traverse approx.(option)

200mm/min

Hand feed per revolution

0.25mm

Hand feed per division

0.002mm

Grinding Wheel

Dimension(O.D x W x I.D)

355x50x127mm

Spindle speed(50/60Hz)

1500/1800 r.p.m.

Motor

Spindle motor

7.5(11)kW/10(15)HP

Hydraulic motor

3.7kW/5HP

Weight

Net weight

8200kg

9300kg

10800kg

12500kg

Gross weight

9600kg

10900kg

13900kg

15600kg

Packing Size

Dimension (L x W x H) (m)

4.25x2.27x2.54

4.91x2.27x2.54

6.83x2.27x2.54

7.6x2.3x2.6
