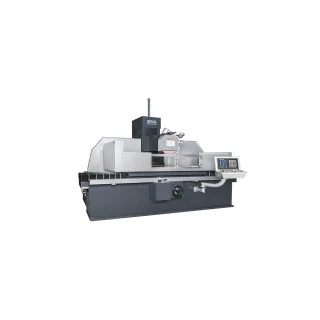

Máy mài phẳng PROTH PSGC-50120AHR

SPECIFICATION / MODELS

PSGC

50100AHR

50120AHR

50150AHR

General Capacity

Max. travel (cross x longitudinal)

560x1150mm

560x1350mm

560x1650mm

Spindle center height from table

700mm

Max height from table top to bottom of standard wheel

522mm

Grinding surface of table

500x1000mm

500x1200mm

500x1500mm

Longitudinal Movement

Hydraulic table speed

1-25m/min

Cross Movement

Intermittent cross feed-approx.(Electro-mechanical)

0.1-15mm/feed

Continuous cross feed-approx.(Electro-mechanical)

2000mm/min(50Hz),2400mm/min(60Hz)

Hand feed per revolution

5mm

Hand feed per division

0.02mm

Vertical Downfeed

Rapid traverse approx.(option)

200mm/min

Hand feed per revolution

0.25mm

Hand feed per division

0.002mm

Grinding Wheel

Dimension(O.D x W x I.D)

355x50x127mm

Spindle speed(50/60Hz)

1500/1800 r.p.m.

Motor

Spindle motor

7.5(11)kW/10(15)HP

Hydraulic motor

3.7kW/5HP

Weight

Net weight

5800kg

6100kg

7000kg

Gross weight

6900kg

7500kg

8500kg

Packing Size

Dimension (L x W x H) (m)

3.98x2.27x2.54

4.25x2.27x2.54

4.91x2.27x2.54
