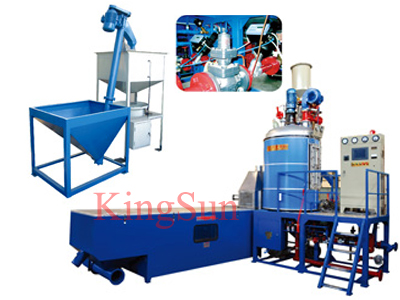

Máy làm xốp SPJ 70-110

PSJ70.110 Batch Pre-epander

Item

Type

PSJ 70

PSJ 110

E*pansion Chamber

Diameter
Volume
Useable Volume

f700mm
0.45m3
0.32 m3

f1100mm
1.4m3
0.9 m3

Steam

Entry
Consumption
Pressure

DN40
1-1.4kg/cycle
0.6-0.8MPa

DN50
6-9kg/cycle
0.6-0.8MPa

Compressed Air

Entry
Consumption
Pressure

DN25
0.4-0.6 m3/cycle
0.6-0.8MPa

DN25
0.5-0.6 m3/cycle
0.6-0.8MPa

Drainage

Drainage Port
Condensate

DN80
DN50

DN80
DN80

Throughput

12 g/l
15 g/l
25 g/l
80g/l

75kg/l
100kg/l
160kg/l
320kg/l

12 g/l
15 g/l
20g/l
30g/l

200kg/l
300kg/l
400kg/l
500kg/l

Material Conveying Line

f150mm

f150mm

Connected Load

13.23KW

16.53KW

Density

12-80 g/l

12-30g/l

Density Tolerance

<=±3%

<=±3%

Overall Dimension

(L*W*H)

5600*2950*3360(mm)

5600*3800*4060(mm)

Weight

1500kg

3500kg

Room Height Required

5000mm

5000mm
